Vit dagføra vøruupplýsingarnar. Vit fara ígjøgnum allar vørulýsingarnar í vørusavninum. Upplýsingarnar um nýtsluøki og tilfar, sum vøran kann brúkast til, kunnu vera skeivar, meðan vit skráseta rætta tilfarið fyri hvørja vøru. Ert tú í iva, spyr tín kontaktpersón hjá A4.
Field of Application

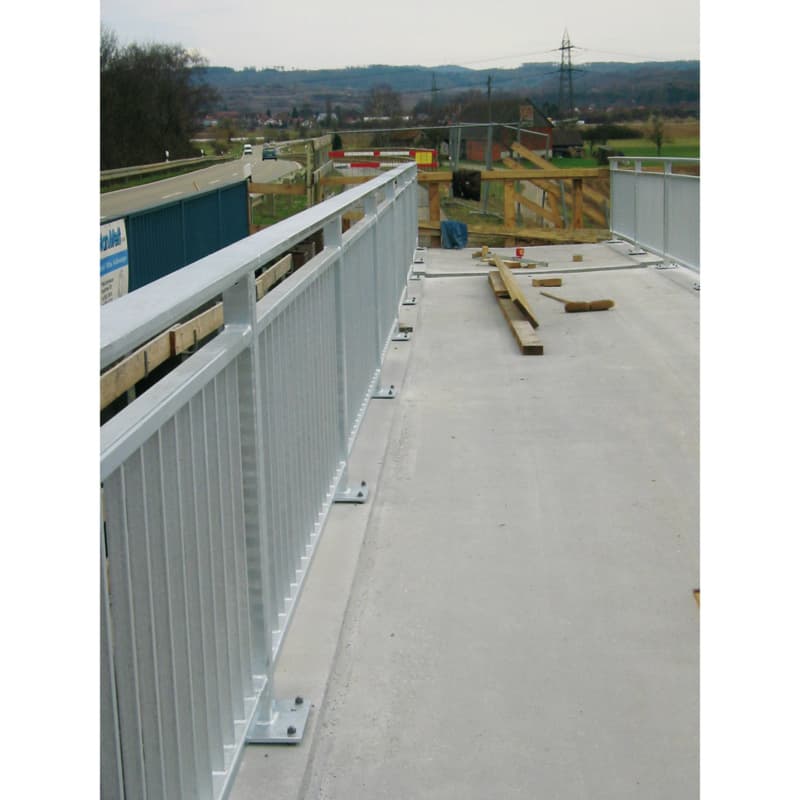

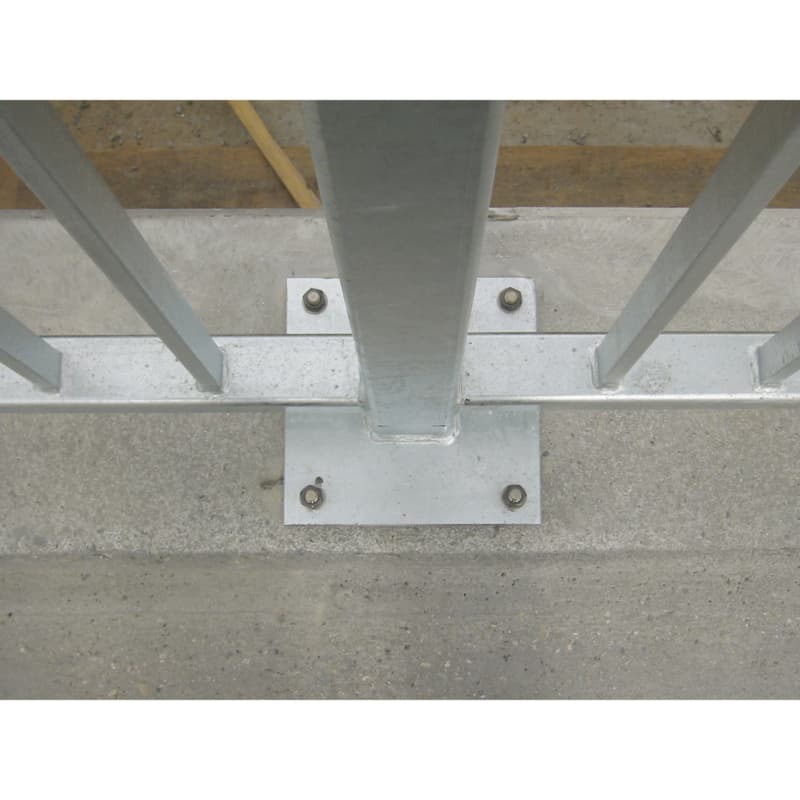

For securing railing posts to bridges, especially when upgrading and constructing coping, cornices (GEL14) and similar attachments in line with these specification drawings.
Vørulýsing
VMZ-A anchor rod for mounting in line with GEL 14 specification drawing
Fyrimunir
- Less drilling required thanks to optimally adjusted anchorage depths
- Most cap gradients and irregularities can be compensated by selecting suitable clamping widths
- Sample calculation (anchor dimensions) in line with GEL 14 available
Góð ráð
- * Material consumption in approx. values under optimum usage conditions; initial flow not taken into account
- ** Not covered by the approval
Faklig nærlýsing
| Anchor diameter | 12 mm |
| Anchor diameter x anchor length (l) | 12 x 130 mm |
| Anchor length (l) | 130 mm |
| Drill hole depth (h 1) | 75 mm |
| Length | 130.0 mm |
| Material | Stainless steel A4 |
| Nominal drill-bit diameter (d 0) | 14 mm |
| Required injection mortar | VMZ 330 |
| Thread diameter (metric thread) | 12 mm |
| Thread type | Metric thread |
| Through-hole in the component to be connected (d f) | 14 mm |
| Torque during anchoring (T inst) | 25 Nm |
| Width across flats | 19 mm |
Væntað veiting: 29.–30. sep.
Bílegg í seinasta lagi mikudagin kl. 23:59 · bíleggingin verður send til Reca hósdagin
VMZ-A anchor rods, A4 70, M12 x 40/130
VMZ-A anchor rod for mounting in line with GEL 14 specification drawing
| Vørunummar | 0914912130 |
| EAN | 4029484426690 |
| Pakkieind | pk (10 stk) |
| Anchor diameter | 12 mm |
| Anchor diameter x anchor length (l) | 12 x 130 mm |
| Anchor length (l) | 130 mm |
| Drill hole depth (h 1) | 75 mm |
| Length | 130.0 mm |
| Veitari | RECA NORM |
