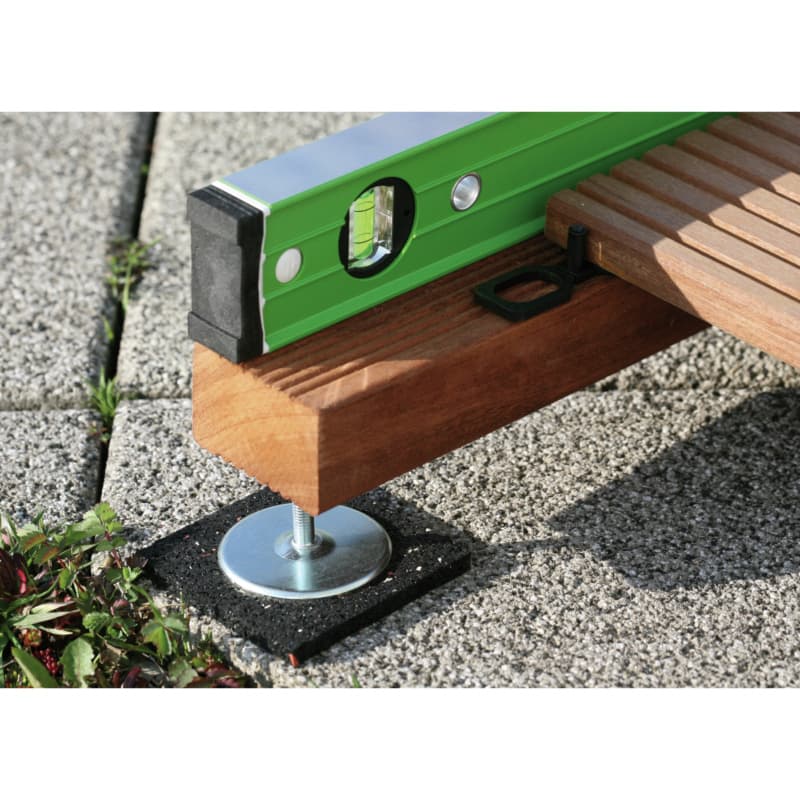

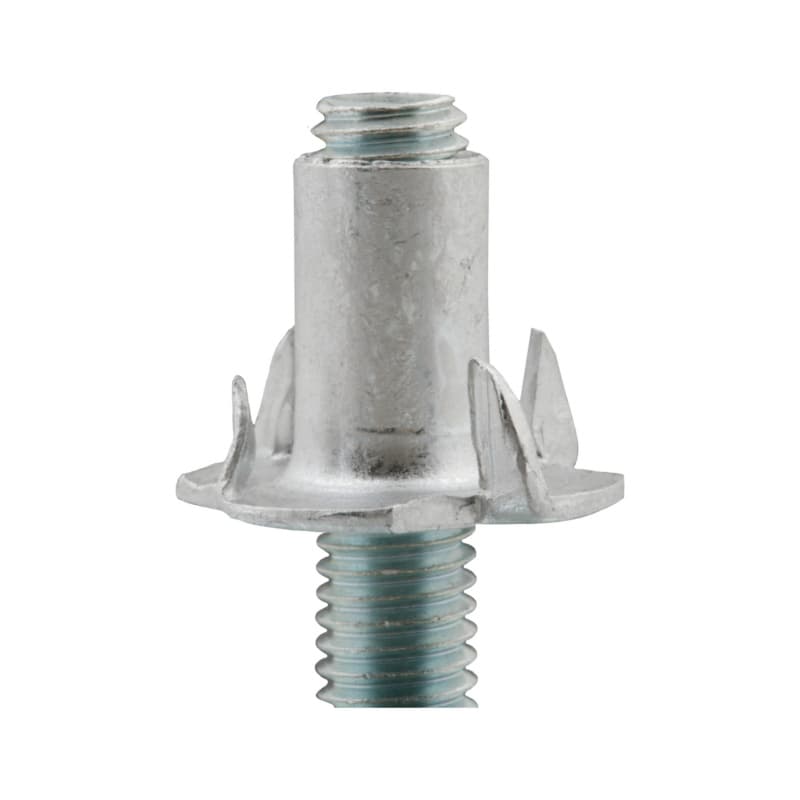

The RECA TT levelling foot consists of a foot with a base plate (dia. 65 mm; 2.5 mm steel), to which an M8 stud bolt is attached, and a drive-in nut. The drive-in nut is also coated with RUSPERT® to minimise reactions with substances in the wood. The RECA TT levelling foot is used to compensate for uneven surfaces and for height adjustment up to 30 mm. The compressive strength of a RECA TT levelling foot is approx. 200 kg.

Required quantity:
• Approx. 6-9 pieces per m²

Application area:

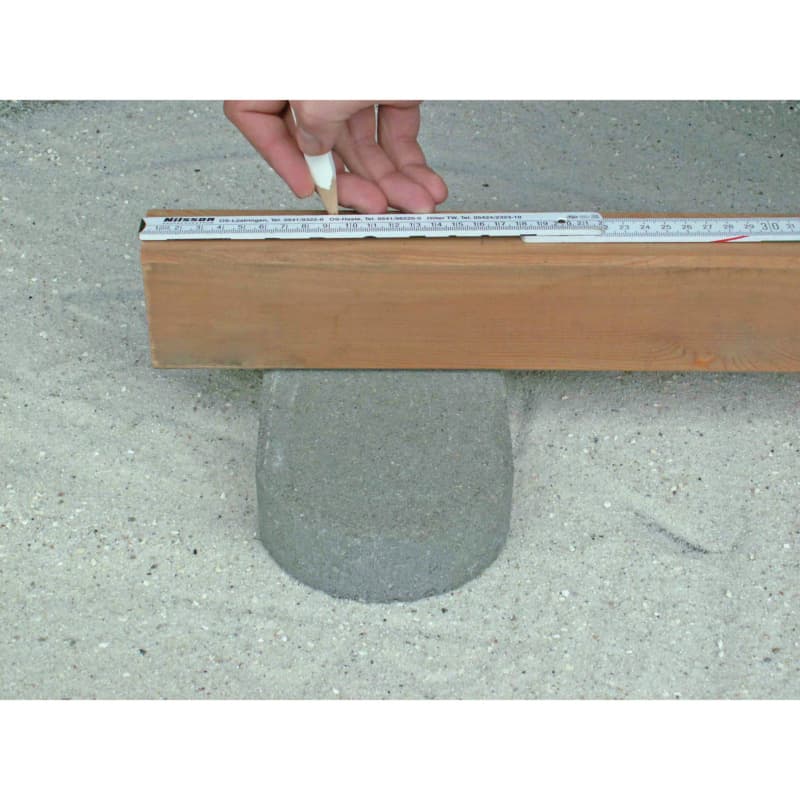

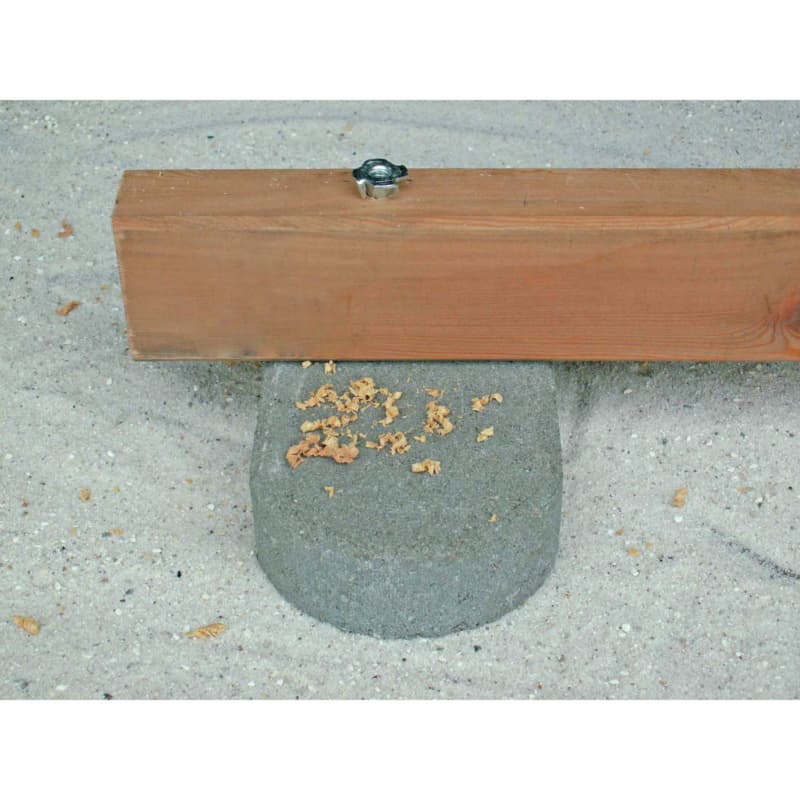

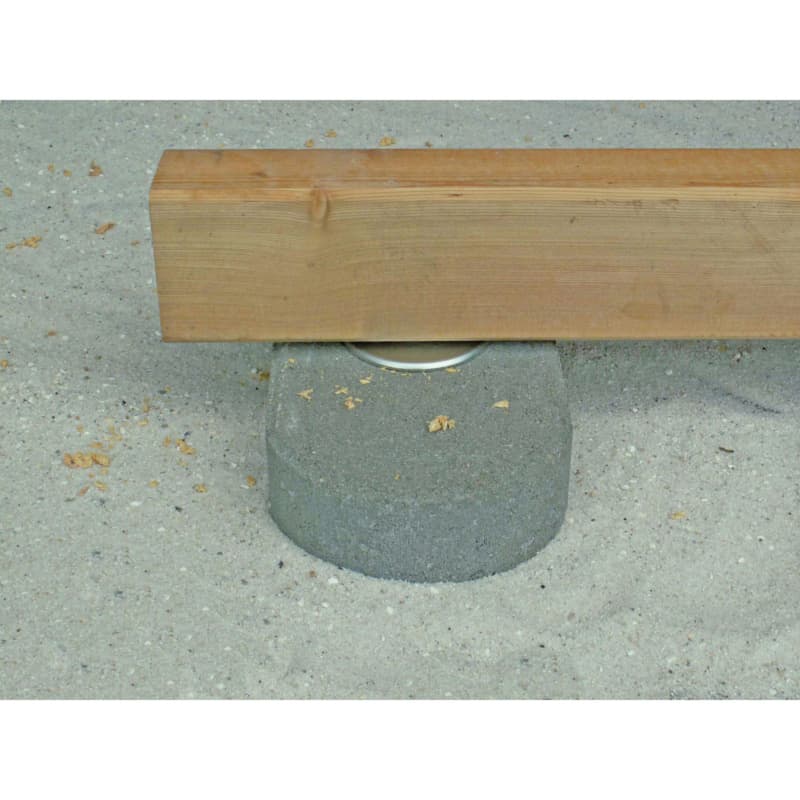

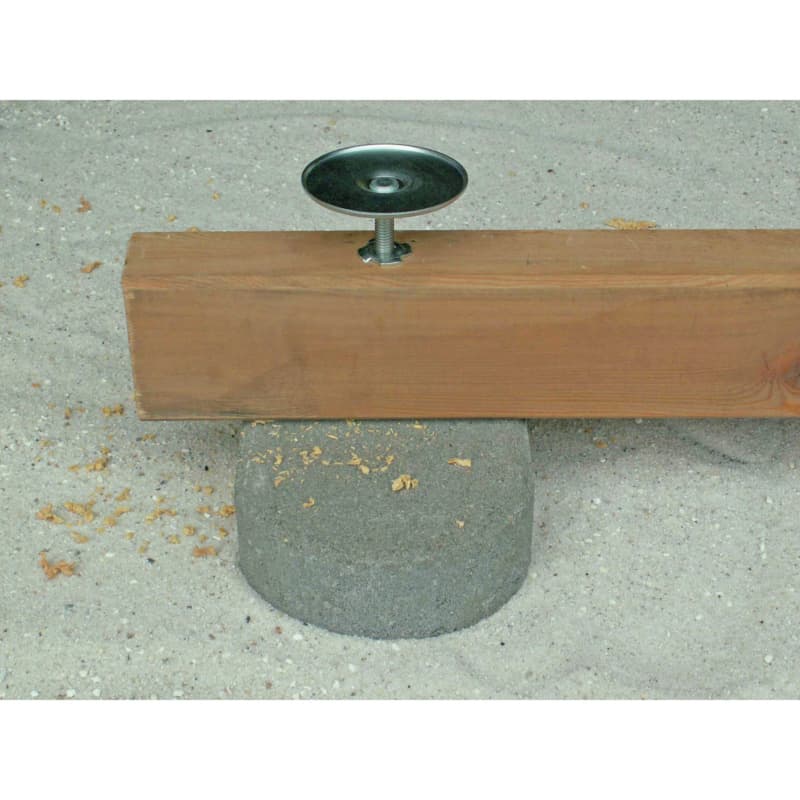

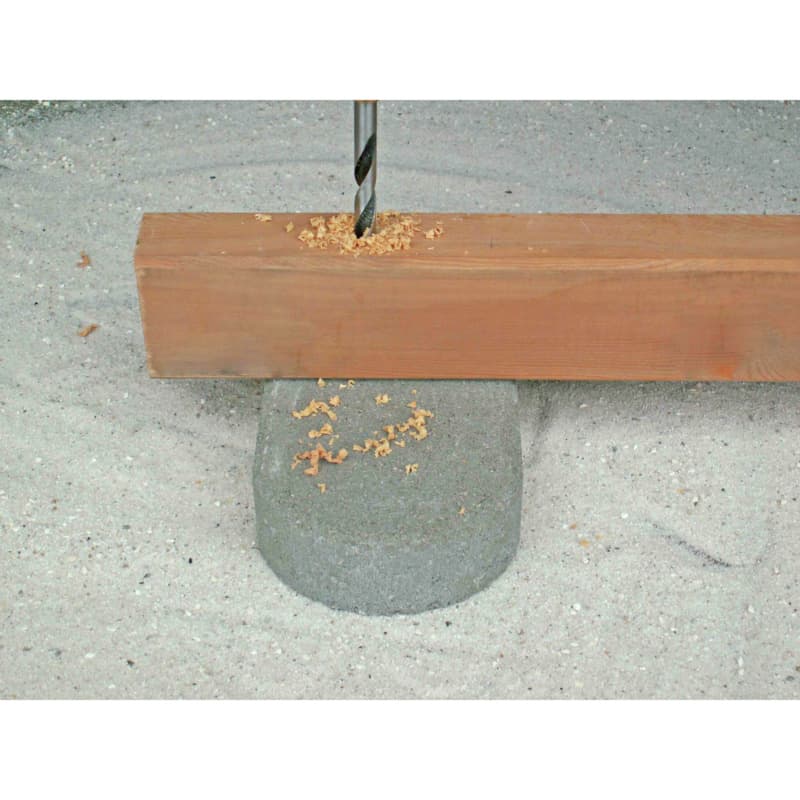

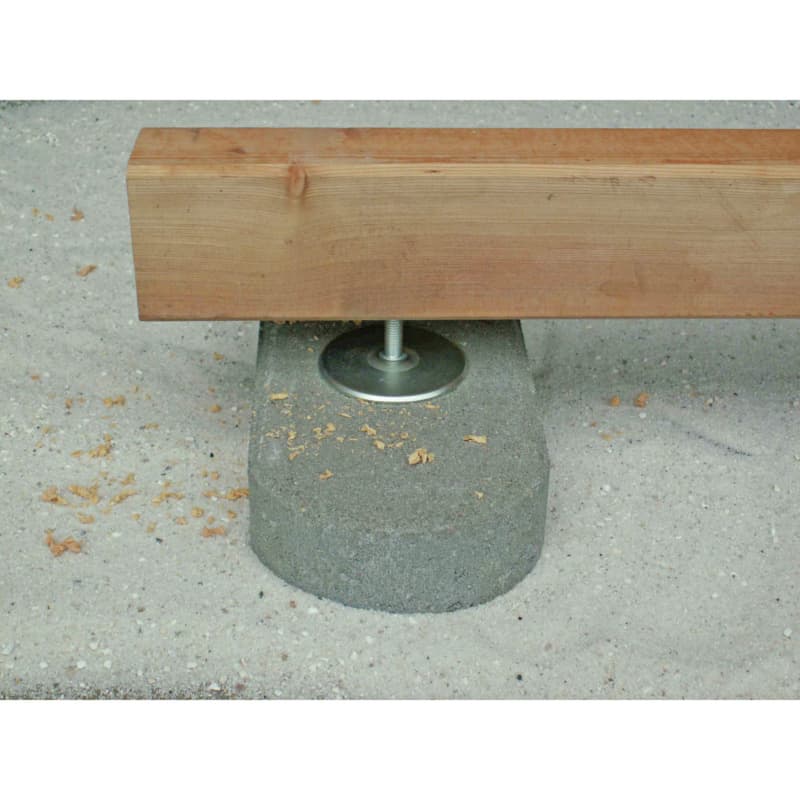

The RECA TT levelling foot should be installed with spacing of approx. 50-100 cm. Please note the compressive strength (approx. 200 kg per levelling foot) and plan for the number of RECA TT levelling feet needed in accordance with your requirements. Mark the distance calculated on the underside of the substructure and pre-drill using a drill bit (diameter 10 mm) to a depth of 35-40 mm. Then, the T nut can be driven into the drill hole. Now screw the levelling foot into the T nut. For levelling more than 30 mm, the RECA TT underlay pad can also be laid underneath the levelling foot. The substructure can be aligned by unscrewing and re-screwing.

Field of Application:

The RECA TT levelling foot is used in terrace construction, gardening and landscaping.

Advice:

Always comply with the rules for structural wood protection.
