Vit dagføra vøruupplýsingarnar. Vit fara ígjøgnum allar vørulýsingarnar í vørusavninum. Upplýsingarnar um nýtsluøki og tilfar, sum vøran kann brúkast til, kunnu vera skeivar, meðan vit skráseta rætta tilfarið fyri hvørja vøru. Ert tú í iva, spyr tín kontaktpersón hjá A4.

Vørulýsing

Thread-rolling screws create their own "female thread" during installation - when screwing into ready-made holes - without creating any chips. This creates an optimal screw connection in steel, high-pressure die-cast metal, aluminium, brass and copper with minimal installation costs.

Fyrimunir

No thread cutting
No chips
Low installation torque
Groove with standard metric thread

Góð ráð

Guidelines for core hole diameter
In copper and copper alloy (E-CU F30 and CuZn F38); aluminium and aluminium alloys (Al 99.5 F13 and AlMn F10) and steel (St 12 and 37). In certain cases, ideal values can only be established in laboratory tests.
Do not use the screw in applications with direct exposure to the weather or in wet rooms with atmospheres containing chlorine gas.

Faklig nærlýsing

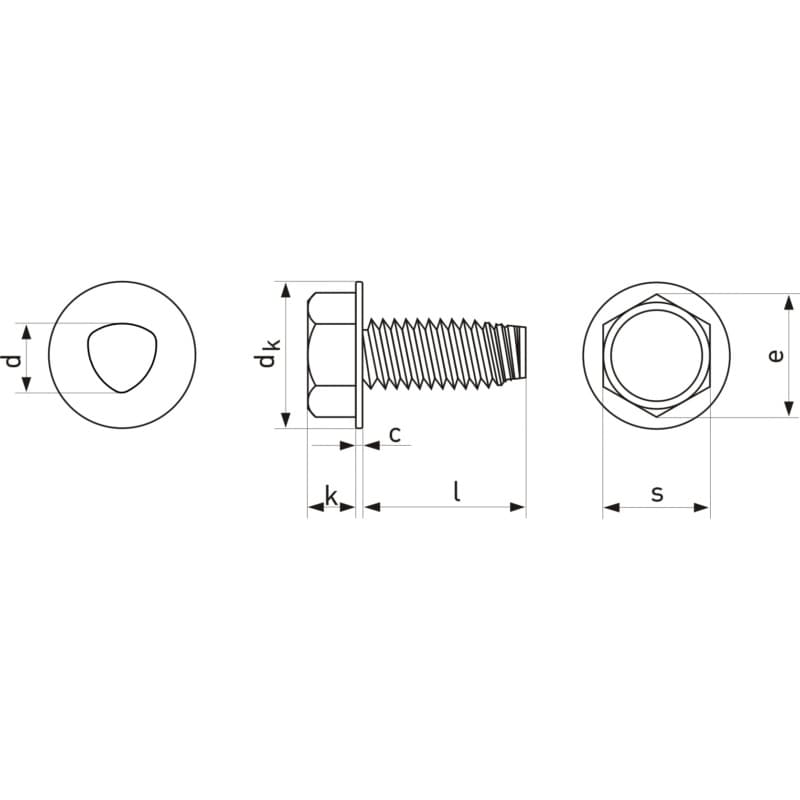

DIN	7500-1
Drive type	Outer hexagon
External drive	WS10
Flange thickness	1.04 mm
Head diameter	13.0 mm
Head height	4.15 mm
Head type	Hexagon head
Length	25.0 mm

Material	Steel
Nominal diameter	6
Standards	DIN 7500-1
Surface	Zinc plated
Thread type	Metric thread
Thread type x nominal diameter	M6
Width across corners	11.05 mm

Væntað veiting: 29.–30. sep.

Bílegg í seinasta lagi mikudagin kl. 23:59 · bíleggingin verður send til Reca hósdagin

Self-tapping screw, hexagonal sim. DIN 7500-DE galvanised, AF 10 M6 x 25

Vørunummar	0209706025
EAN	4029484514571
Pakkieind	pk (250 stk)
DIN	7500-1
Drive type	Outer hexagon
External drive	WS10
Flange thickness	1.04 mm
Head diameter	13.0 mm
Veitari	RECA NORM
