Bronzed pliers with multi-component sleeves

• For crimping wire end ferrules in line with DIN 46228 parts 1 + 4
• Self-adjustment to required size of wire end ferrules: No crimping errors due to use of incorrect crimp insert
• Fits all twin wire end ferrules within the capacity range

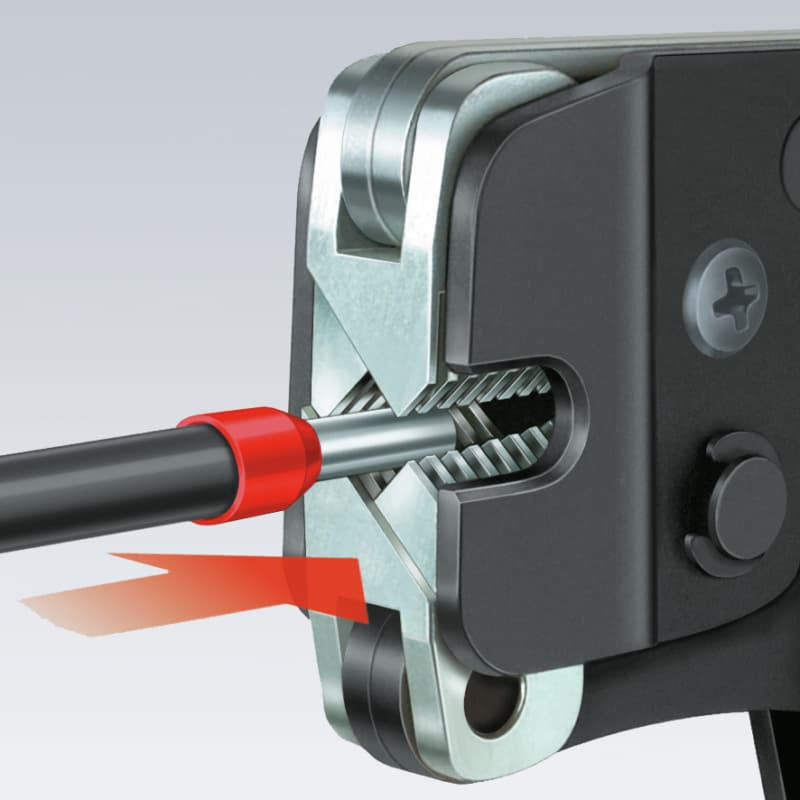

• Wire end ferrules inserted into front of tool
• consistently high crimping quality thanks to force stop function (can be unlocked)
• Crimping pressure precisely set (calibrated) at factory, adjustable
• Knee lever creates additional force for fatigue-free working
• Lightweight, manageable design for ease of use
• Special grade chromium-vanadium electric steel, oil-hardened

Field of Application:

• Wire end ferrules
• 0.08–10 and 16 mm²
• Number of nests: 1

Advantages:

Crimping tool for wire end ferrules with three great advantages for the user:

• Automatic self-adjustment to the wire end ferrule in use: This reduces the workload for the technician and allows safe, reliable and rapid crimping
• Application range also for larger cross-sections: Square crimping 0.08 to 10.0 and 16.0 mm²

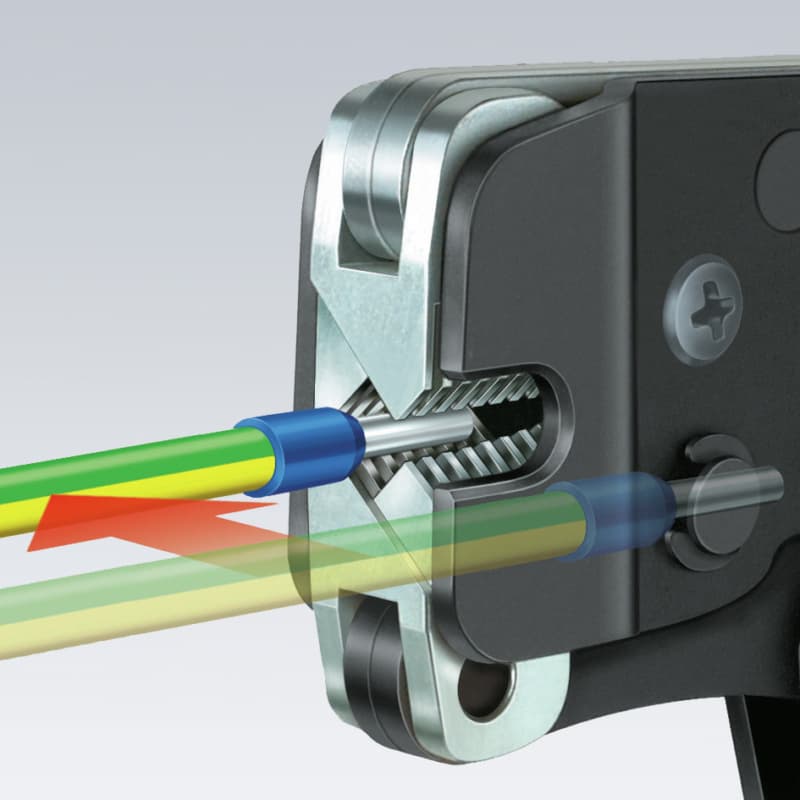

• Front insertion: Eases difficult working situations in confined spaces

Design:

Front insertion

Advice:

• Compression of 0.08 to 10.0 mm² and 16.0 mm² in one profile
• With selection lever for setting the crimping range 0.08 to 10 or 16.0 mm²
