Vit dagføra vøruupplýsingarnar. Vit fara ígjøgnum allar vørulýsingarnar í vørusavninum. Upplýsingarnar um nýtsluøki og tilfar, sum vøran kann brúkast til, kunnu vera skeivar, meðan vit skráseta rætta tilfarið fyri hvørja vøru. Ert tú í iva, spyr tín kontaktpersón hjá A4.
- Aluminium
- Plast
Connecting the internal bracing to the plastic window profile. Screwing joining plates or angle brackets onto the aluminium window.
Góð ráð
- Minimum screw length = clamping force + material thickness + drill bit tip length + 8 mm.
- Do not use the screw in applications with direct exposure to the weather or in wet rooms with atmospheres containing chlorine gas.
Faklig nærlýsing

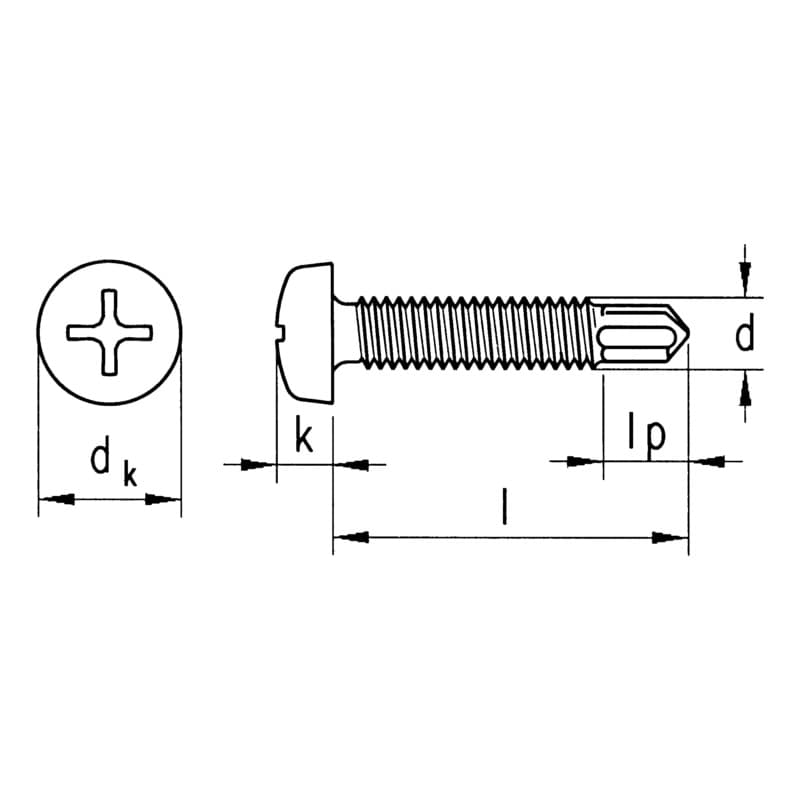

| Diameter | 4 mm |
| DIN | 7504 similar |
| Drill tip length | 5 mm |
| Head diameter | 7.5 mm |
| Head height | 2.8 mm |
| Head type | Pan head |
| Internal drive | H2 |
| Length | 16 mm |
| Material | Hardened steel |
| Max. material thickness | 2.5 mm |
| Min. material thickness | 0 mm |
| Min./max. material thickness | 0-2.5 mm |
| Surface | Zinc plated |
Væntað veiting: 29.–30. sep.
Bílegg í seinasta lagi mikudagin kl. 23:59 · bíleggingin verður send til Reca hósdagin
sebS pan hd drill.scr, window const, sim to DIN 7504-N galvanised, H2 M4 x 16
Field of Application: Connecting the internal bracing to the plastic window profile. Screwing joining plates or angle brackets onto the aluminium window. Advice: Minimum screw length = clamping force + material thickness + drill bit tip length + 8 mm. Do not use the screw in applications with direct exposure to the weather or in wet rooms with atmospheres containing chlorine gas.
| Vørunummar | 021100416 |
| EAN | 4029484050260 |
| Pakkieind | pk (1000 stk) |
| Diameter | 4 mm |
| DIN | 7504 similar |
| Drill tip length | 5 mm |
| Head diameter | 7.5 mm |
| Head height | 2.8 mm |
| Veitari | RECA NORM |
