Vit dagføra vøruupplýsingarnar. Vit fara ígjøgnum allar vørulýsingarnar í vørusavninum. Upplýsingarnar um nýtsluøki og tilfar, sum vøran kann brúkast til, kunnu vera skeivar, meðan vit skráseta rætta tilfarið fyri hvørja vøru. Ert tú í iva, spyr tín kontaktpersón hjá A4.
- Stál
- Træ
Drilling capacity Drilling performance [mm]: 0.4-0.75 Component 1 [mm]: steel 0.4-0.75 Component 2 [mm]: wood Minimum length of thread engagement [mm]: 37 Clamping range of 36 mm to 258 mm across all dimensions

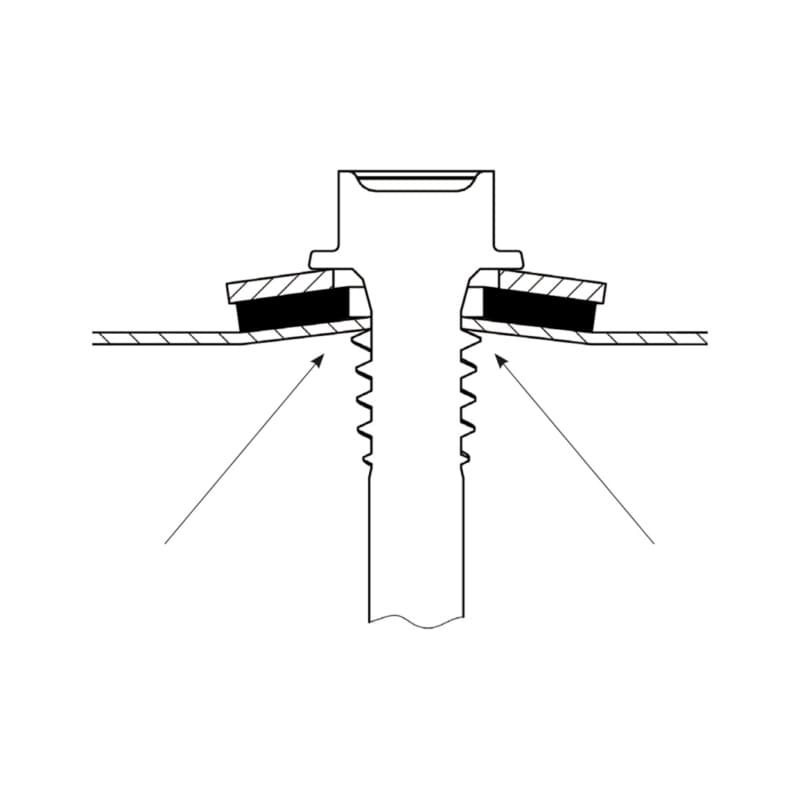

RP-TD-P Sandwich self-drilling screw - the chip-free self-drilling screw for screwing sandwich elements onto wooden substructures without creating chips ETA_18_1136
Fyrimunir
- + Patented geometry enables chip-free fastening. No subsequent cleaning of the roof surface required = saves time and money.
- + Special drilling segment for reducing splitting in the wood substructure
Góð ráð
- Installation recommendation:
- 1. While placing the screw, apply increased pressure
- 2. The pressure can be reduced as soon as the thread engages. The speed can then be increased to approx. 1,600 revolutions.
- 3. Immediately before fitting the sealing washer, reduce the speed considerably and tighten the sealing washer until it compresses slightly.
- 4. The recommended tightening torque for steel substructures is approx. 3 Nm, for material thicknesses less than 0.8 mm it is 1 Nm. The recommended tightening torque for aluminium substructures is approx. 1 Nm, for material thicknesses less than 0.8 mm it is 0.5 Nm.
Faklig nærlýsing
| Diameter | 6.5 mm |
| Diameter x length | 6.5 x 250 mm |
| External drive | WS8 |
| Head diameter | 10.5 mm |
| Head height | 5.1 mm |
| Head type | Hexagon washer head |
| Length | 250 mm |
| Material | Bimetal |
| Max. drilling capacity | 0.75 mm |
| Max. grip range | 208 mm |
| Min. grip range | 85 mm |
| Min./max. grip range | 85-208 mm |
| Screw-thread length with drill tip | 84.5 mm |
| Washer diameter | 19 mm |
Væntað veiting: 29.–30. sep.
Bílegg í seinasta lagi mikudagin kl. 23:59 · bíleggingin verður send til Reca hósdagin
RP-TD-P Sandwich self-drilling screw, hexagon head, sealing washer 19-6.5x250
RP-TD-P Sandwich self-drilling screw - the chip-free self-drilling screw for screwing sandwich elements onto wooden substructures without creating chips ETA_18_1136
| Vørunummar | 0220165250 |
| EAN | 4066115469527 |
| Pakkieind | pk (50 stk) |
| Diameter | 6.5 mm |
| Diameter x length | 6.5 x 250 mm |
| External drive | WS8 |
| Head diameter | 10.5 mm |
| Head height | 5.1 mm |
| Veitari | RECA NORM |
