Vit dagføra vøruupplýsingarnar. Vit fara ígjøgnum allar vørulýsingarnar í vørusavninum. Upplýsingarnar um nýtsluøki og tilfar, sum vøran kann brúkast til, kunnu vera skeivar, meðan vit skráseta rætta tilfarið fyri hvørja vøru. Ert tú í iva, spyr tín kontaktpersón hjá A4.
Góð ráð
- Do not use the screw in applications with direct exposure to the weather or in wet rooms with atmospheres containing chlorine gas.
Faklig nærlýsing
| Diameter of contact surface | 50 mm |
| DIN | 580 |
| Head type | With lifting eye |
| Height | 90 mm |
| Internal diameter | 50 mm |
| Material | Case hardening steel, 1.1141, C15E |
| Nominal diameter | 24 mm |
| Outer diameter | 90 mm |
| Standards | DIN 580 |
| Surface | Zinc plated |
| Thread length (metric thread) | 36 mm |
| Thread type | Metric thread |
| Thread type x nominal diameter | M24 |
Væntað veiting: 29.–30. sep.
Bílegg í seinasta lagi mikudagin kl. 23:59 · bíleggingin verður send til Reca hósdagin

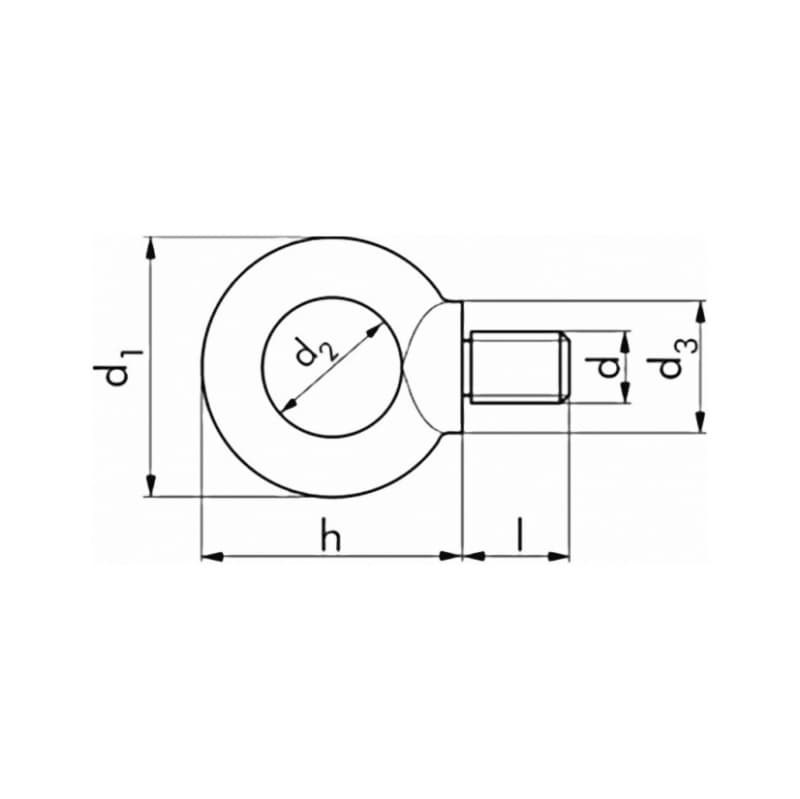

Ring bolt, DIN 580-C15E, galvanised, M24
Advice: Do not use the screw in applications with direct exposure to the weather or in wet rooms with atmospheres containing chlorine gas.
| Vørunummar | 029504 024 |
| EAN | 4029484521425 |
| Pakkieind | pk (5 stk) |
| Diameter of contact surface | 50 mm |
| DIN | 580 |
| Head type | With lifting eye |
| Height | 90 mm |
| Internal diameter | 50 mm |
| Veitari | RECA NORM |
