Simple fastening elements for mounting ventilation ducts and spiral seam pipes

Field of Application:

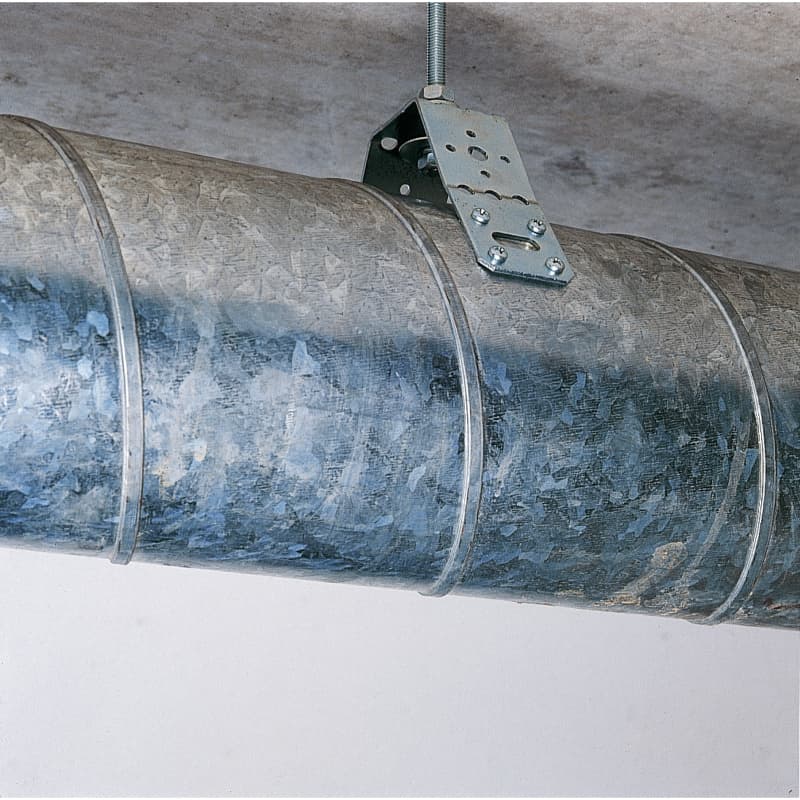

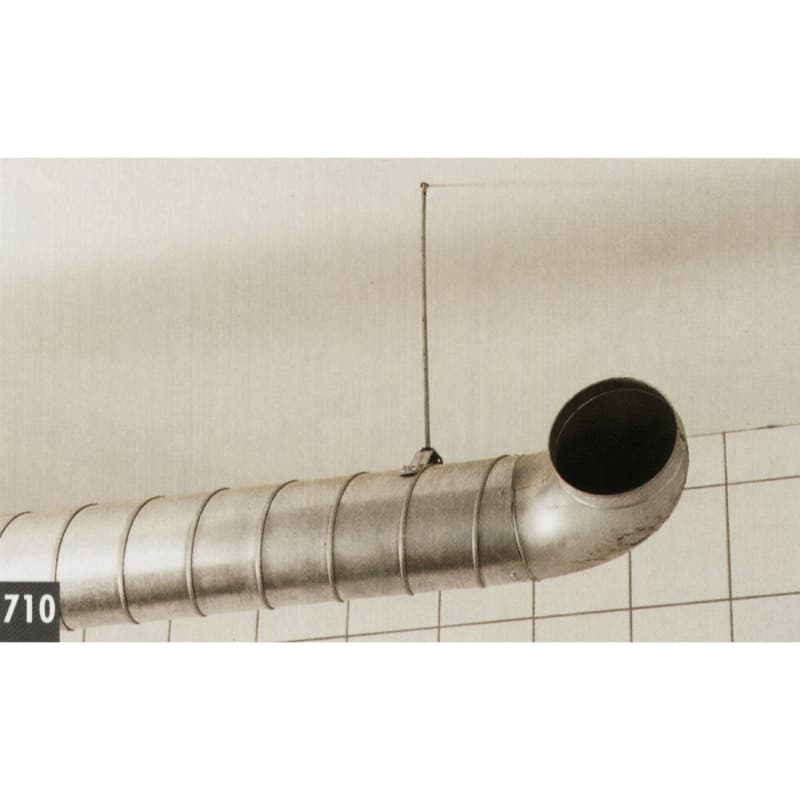

For attaching spiral seam pipes in ventilation and air conditioning systems.

Advantages:

Galvanised

Acoustic insulation in accordance with DIN 4109

Insulation element in accordance with B2 fire class

Easily fitted to trapezoidal plate profiles or pipe diameters by means of predetermined bending points

Through hole for M8 threaded rods

Holes for tapping screws (3.9 or 4.2 mm) and sebS (4 mm)

Advice:

Note: Always secure threaded rods and threaded pieces with jam nuts. Maximum load 200 N.
