Simple fastening elements for mounting ventilation ducts and spiral seam pipes

Field of Application:

For attaching spiral ducts in ventilation and air conditioning systems. Use 4 mm sealing rivets or 4.2 mm sebS drilling screws in case-hardened steel for attachment to trapezoidal plates.

Advantages:

Galvanised

Noise protection to DIN 4109

Insulation element to fire class B 2

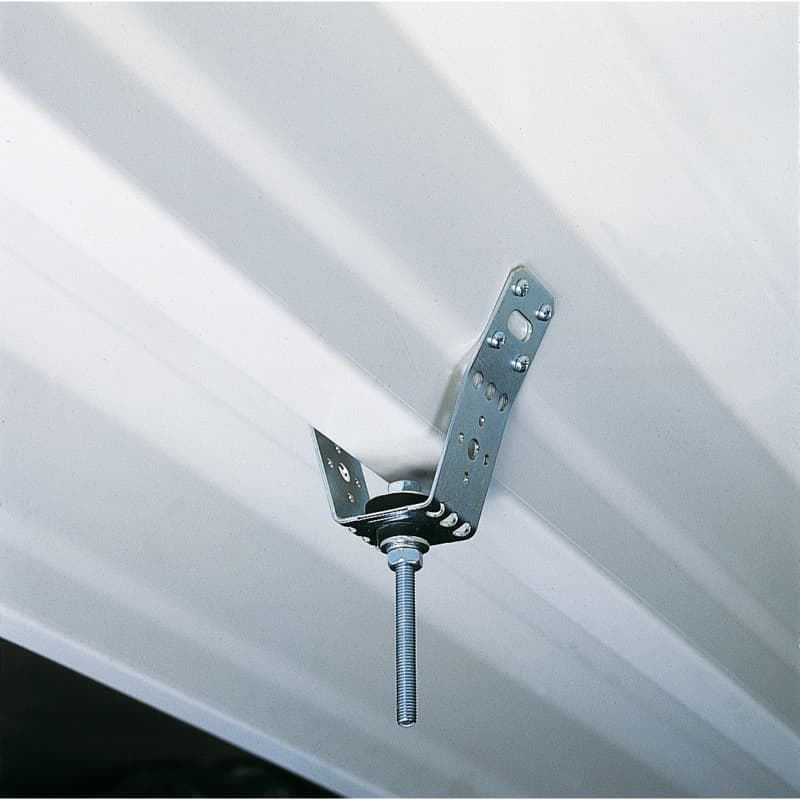

Easily fitted to trapezoidal plate profile or pipe diameter by means of predetermined bending points

Through hole for M8 threaded rods

Advice:

Note: Always secure threaded rods and threaded pieces with jam nuts. Maximum permissible load of trapezoidal sheet metal hanger is 1300 N, however the holding force of the trapezoidal sheet metal itself must be observed without fail.
