- Plast

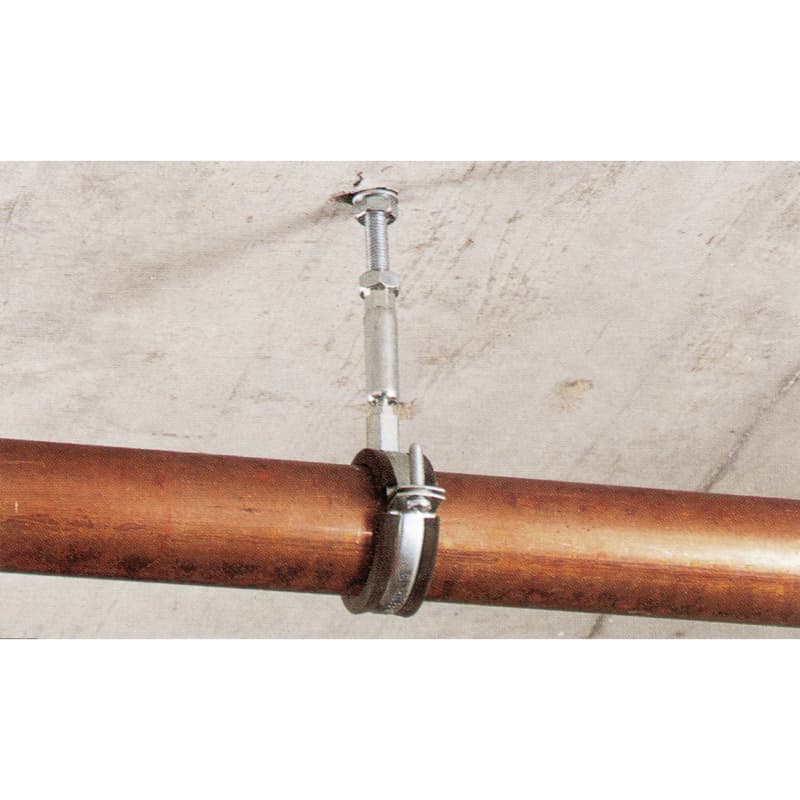

For pendulum-mounting of pipe hangers and height adjustment. Recommended for metal pipes up to DN 50 and plastic pipes up to DN 100.
The recamo mounting rail system consists of various rails and accessory parts in four sizes: light-duty type 27, medium-duty type 28, medium-heavy-duty type 38 and lastly the heavy-duty domestic engineering type 40
Fyrimunir
- Galvanised
- Quick and simple installation
- Infinitely variable height adjustment with inspection hole for minimum screw-in depth
- Hexagon adapter for height adjustment

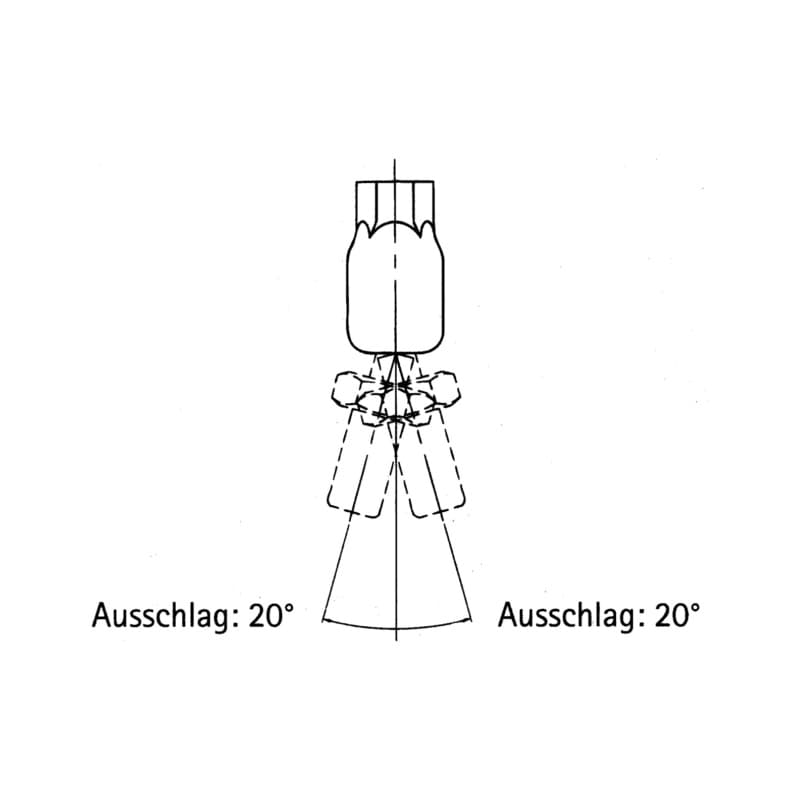

- Lateral deflection 20°
Faklig nærlýsing

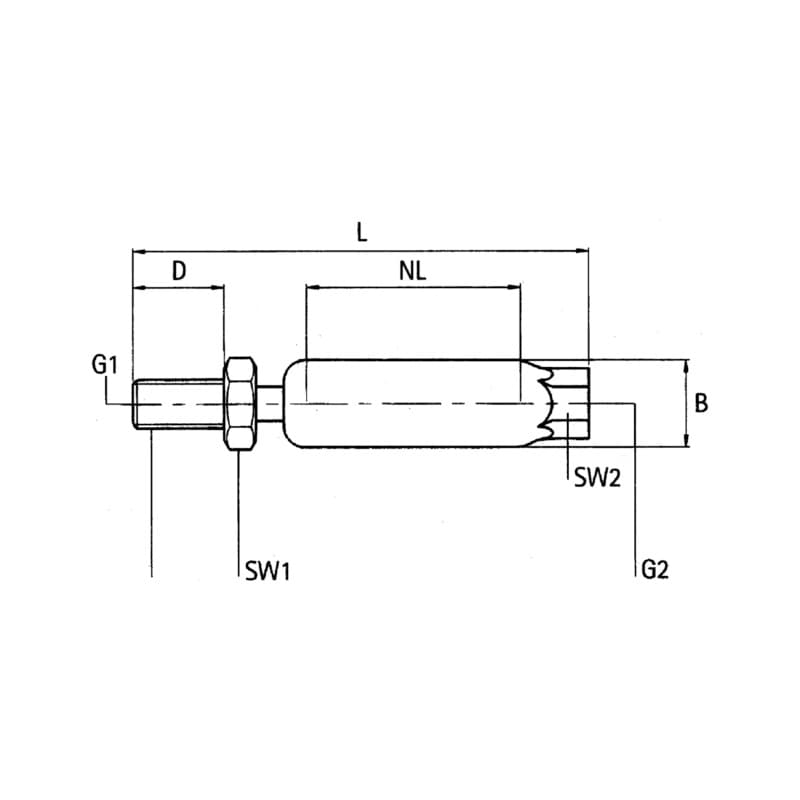

| Effective length | 7.0 mm |
| Length | 49.0 mm |
| Max. load force | 3000 N |
| Nominal diameter | 10 mm |
| Thread length | 15.0 mm |
| Thread type | Metric thread |
| Thread type x nominal diameter | M10 |
| Width across flats | 13 mm |
Væntað veiting: 10.–11. nov.
Bílegg í seinasta lagi mikudagin kl. 23:59 · bíleggingin verður send til Reca hósdagin
recamo suspending bracket height adjuster, zinc-plated M 10x15
The recamo mounting rail system consists of various rails and accessory parts in four sizes: light-duty type 27, medium-duty type 28, medium-heavy-duty type 38 and lastly the heavy-duty domestic engineering type 40
| Vørunummar | 0859405107 |
| EAN | 4029484140909 |
| Pakkieind | pk (50 stk) |
| Effective length | 7.0 mm |
| Length | 49.0 mm |
| Max. load force | 3000 N |
| Nominal diameter | 10 mm |
| Thread length | 15.0 mm |
| Veitari | RECA NORM |
