Vit dagføra vøruupplýsingarnar. Vit fara ígjøgnum allar vørulýsingarnar í vørusavninum. Upplýsingarnar um nýtsluøki og tilfar, sum vøran kann brúkast til, kunnu vera skeivar, meðan vit skráseta rætta tilfarið fyri hvørja vøru. Ert tú í iva, spyr tín kontaktpersón hjá A4.

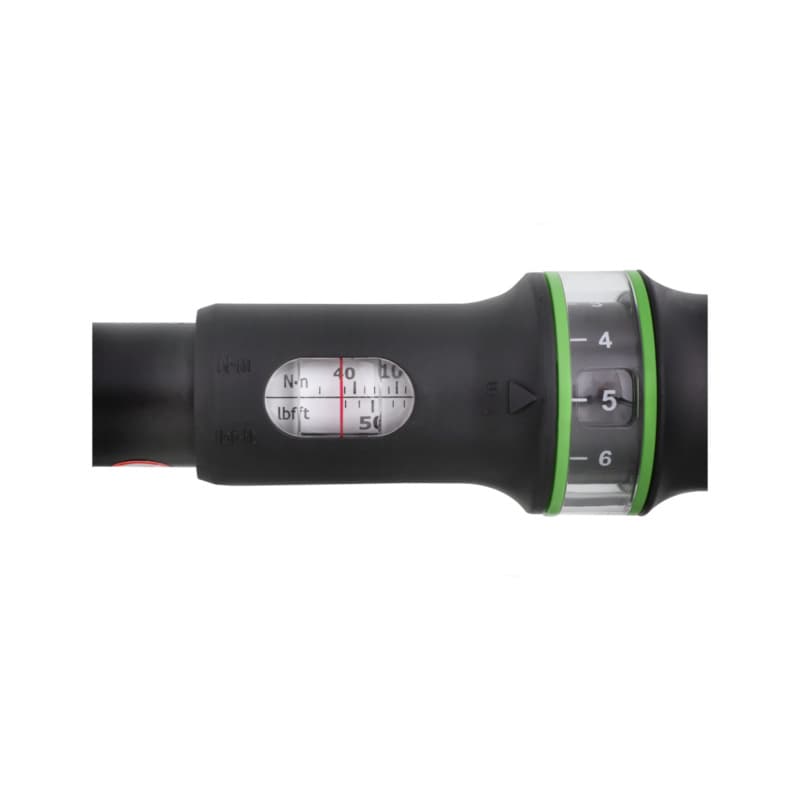

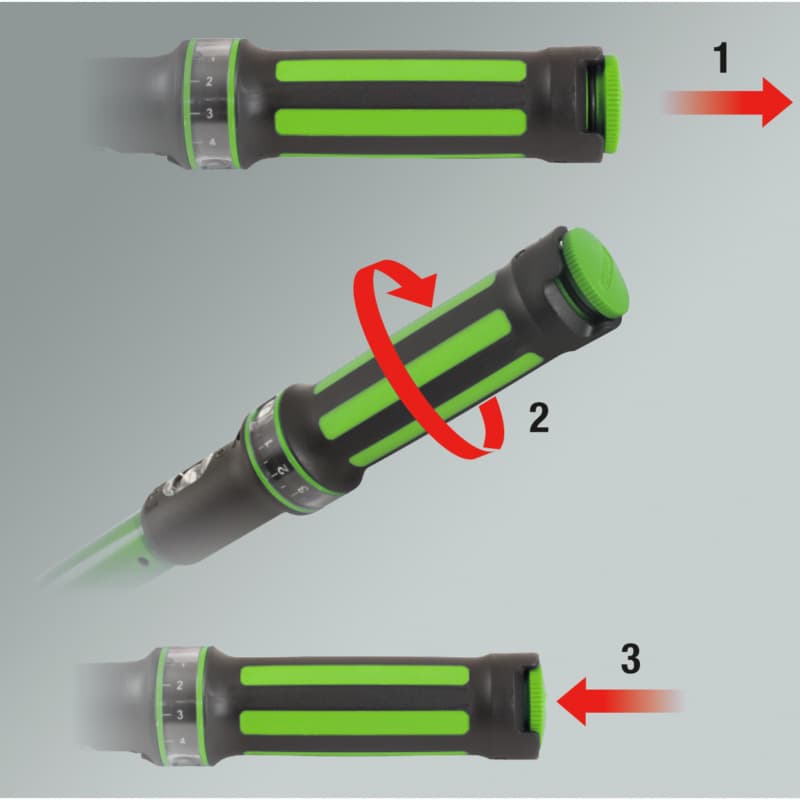

• Trigger accuracy: ±3 % tolerance from the set scale value • High level of repetition accuracy and precision for at least 5000 load cycles • For controlled anti-clockwise and clockwise tightening • Knurled turning knob on the reversible square drive for manual adjustment • The actuation direction is changed by pushing the square drive through • Dual scale in N•m and lbf•ft graduations for precise adjustment • Includes finely divisible N•m micrometre scale for fine and precise adjustment • Large viewing window with magnifying function for optimum readability • Clearly audible and perceptible torque trigger thanks to quick-release function • Robust 30-tooth ratchet mechanism • Quick and reliable torque adjustment by turning the handle • Secure locking feature on the handle • Ergonomic and comfortable two-component handle with soft-grip zone • Square drive in accordance with DIN 3120 - ISO 1174 with ball lock • Individual serial number for clear product identification • Includes certificate in accordance with DIN EN ISO 6789 - based on national standards
Góð ráð
- Release the load after every application by twisting the torque mechanism to the 0 position.
- The torque wrench must be inspected (calibrated) at specified intervals, as for every measuring tool.
- Calibration certificates are valid for a maximum of 12 months from the time of commissioning. If the tool is used frequently,
- this period should be reduced. A period should be specified after an assessment in accordance with DIN EN ISO 6789, section 5.3.2, after 5000 actuations.
Faklig nærlýsing
| Head diameter | 35 mm |
| Height | 18.0 mm |
| Length | 289.0 mm |
| Max. torque measuring range | 25 Nm |
| Min. torque measuring range | 5 Nm |
| Min./max. torque measuring range | 5-25 Nm |
| Scale value torque | 0.1 Nm |
| Tip size | 1/4 inch |
| Weight | 460 g |
Væntað veiting: 29.–30. sep.
Bílegg í seinasta lagi mikudagin kl. 23:59 · bíleggingin verður send til Reca hósdagin
RECA torque wrench 1/4 inch 5–25 Nm 289 mm
• Trigger accuracy: ±3 % tolerance from the set scale value • High level of repetition accuracy and precision for at least 5000 load cycles • For controlled anti-clockwise and clockwise tightening • Knurled turning knob on the reversible square drive for manual adjustment • The actuation direction is changed by pushing the square drive through • Dual scale in N•m and lbf•ft graduations for precise adjustment • Includes finely divisible N•m micrometre scale for fine and precise adjustment • Large viewing window with magnifying function for optimum readability • Clearly audible and perceptible torque trigger thanks to quick-release function • Robust 30-tooth ratchet mechanism • Quick and reliable torque adjustment by turning the handle • Secure locking feature on the handle • Ergonomic and comfortable two-component handle with soft-grip zone • Square drive in accordance with DIN 3120 - ISO 1174 with ball lock • Individual serial number for clear product identification • Includes certificate in accordance with DIN EN ISO 6789 - based on national standards
| Vørunummar | 070050125 |
| EAN | 4029484520060 |
| Pakkieind | 1 stk |
| Head diameter | 35 mm |
| Height | 18.0 mm |
| Length | 289.0 mm |
| Max. torque measuring range | 25 Nm |
| Min. torque measuring range | 5 Nm |
| Veitari | RECA NORM |
