Vit dagføra vøruupplýsingarnar. Vit fara ígjøgnum allar vørulýsingarnar í vørusavninum. Upplýsingarnar um nýtsluøki og tilfar, sum vøran kann brúkast til, kunnu vera skeivar, meðan vit skráseta rætta tilfarið fyri hvørja vøru. Ert tú í iva, spyr tín kontaktpersón hjá A4.
Góð ráð
- Partial threads can have the following lengths: M3 > 20 mm; M4-M5 > 25 mm; M6 > 30 mm; M8 > 35 mm; M10 > 40 mm; M12 > 50 mm; M16 > 65 mm
- Do not use the screw in applications with direct exposure to the weather or in wet rooms with atmospheres containing chlorine gas.
Design
With flange
Faklig nærlýsing
| Compliant with REACH | Yes |
| Design | With flange |
| Drive depth | 2.2 mm |
| Head diameter | 11.8 mm |
| Head height | 2.7 mm |
| Head type | Button head with collar |
| Internal drive | HS3 |
| ISO | 7380-2 |
| Length | 12 mm |
| Material | Steel |
| Nominal diameter | 5 mm |
| Property class | 10.9 |
| RoHS-compliant | Yes |
| Standards | ISO 7380-2 |
| Surface | Zinc plated |
| Thread type | Metric thread |
| Thread type x nominal diameter | M5 |
| Width across flats | 3 mm |
Væntað veiting: 29.–30. sep.
Bílegg í seinasta lagi mikudagin kl. 23:59 · bíleggingin verður send til Reca hósdagin

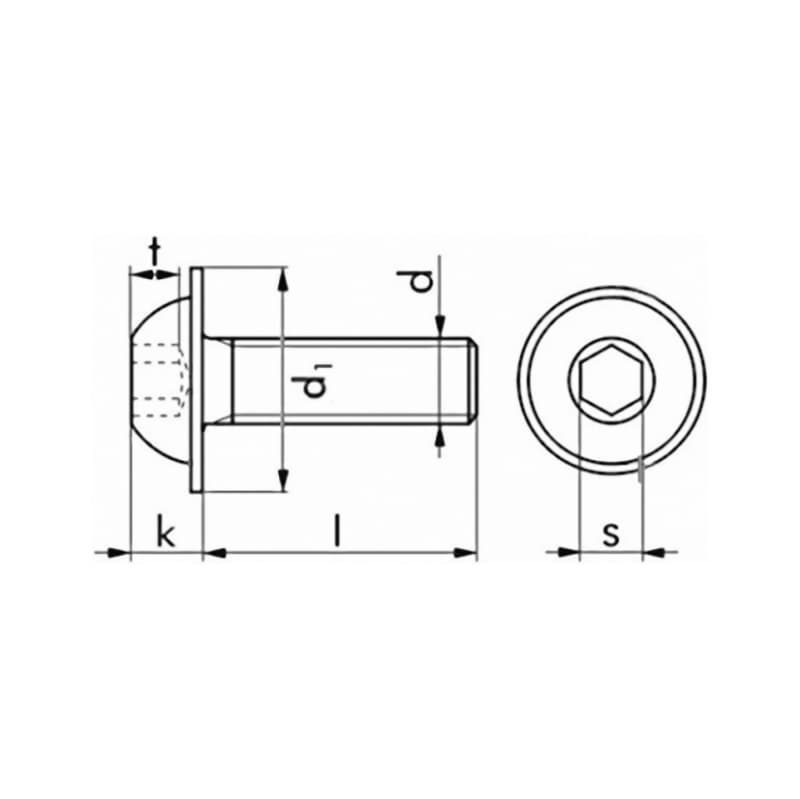

Pan head screw with flange, DIN EN ISO 7380-2 10.9, galv, hex. socket 3 M5 x 12
Design: With flange Advice: Partial threads can have the following lengths: M3 > 20 mm; M4-M5 > 25 mm; M6 > 30 mm; M8 > 35 mm; M10 > 40 mm; M12 > 50 mm; M16 > 65 mm Do not use the screw in applications with direct exposure to the weather or in wet rooms with atmospheres containing chlorine gas.
| Vørunummar | 00625 12 |
| EAN | 4029484426447 |
| Pakkieind | pk (500 stk) |
| Compliant with REACH | Yes |
| Design | With flange |
| Drive depth | 2.2 mm |
| Head diameter | 11.8 mm |
| Head height | 2.7 mm |
| Veitari | RECA NORM |
