The Nord-Lock lock washers have wedge surfaces on one side with a cam angle greater than the pitch angle of the bolt thread. Radial ribs can be found on the opposite side. The washers are supplied in pairs with the wedge surfaces glued to one another. When the bolt and/or nut is tightened, the opposing wedge surfaces and the external radial ribs mechanically interlock with the surrounding material. Movement is only possible between the wedge surfaces. Any attempt from the bolt/nut to rotate loose, for example due to vibration, is blocked by the wedge effect creating increased pretension. The connection can be loosened manually once the increased pretension is overcome.
Fyrimunir
- Maximum safety against working loose from vibrations and dynamic loads
- Simple installation and removal using standard tools
- Can be used up to bolt grade 12.9
- Can be used in same temperature range as the bolt
- The connection can be unscrewed and secured again at any time
- Reusable
Washers glued in pairs || Discs glued in pairs || Washers glued in pairs
Faklig nærlýsing

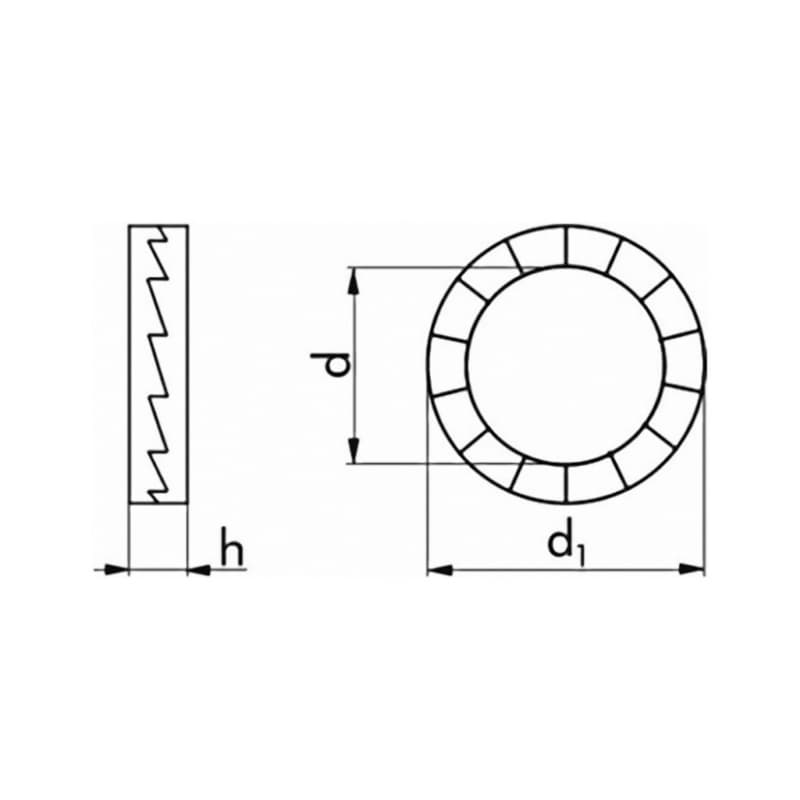

| Design | Washers glued in pairs |
| DIN | 25201 |
| Height | 1.8 mm |
| Internal diameter | 6.5 mm |
| Material | Steel |
| Outer diameter | 10.8 mm |
| Standards | DIN 25201 |
| Suitable for screw | M6 |
| Surface | Flake zinc |
Væntað veiting: 29.–30. sep.
Bílegg í seinasta lagi mikudagin kl. 23:59 · bíleggingin verður send til Reca hósdagin
Nord-Lock lock washer pair, Delta Protekt, 6.5 mm
The Nord-Lock lock washers have wedge surfaces on one side with a cam angle greater than the pitch angle of the bolt thread. Radial ribs can be found on the opposite side. The washers are supplied in pairs with the wedge surfaces glued to one another. When the bolt and/or nut is tightened, the opposing wedge surfaces and the external radial ribs mechanically interlock with the surrounding material. Movement is only possible between the wedge surfaces. Any attempt from the bolt/nut to rotate loose, for example due to vibration, is blocked by the wedge effect creating increased pretension. The connection can be loosened manually once the increased pretension is overcome.
| Vørunummar | 043506 |
| EAN | 4029484263370 |
| Pakkieind | pk (200 stk) |
| Design | Washers glued in pairs |
| DIN | 25201 |
| Height | 1.8 mm |
| Internal diameter | 6.5 mm |
| Material | Steel |
| Veitari | RECA NORM |
