Vit dagføra vøruupplýsingarnar. Vit fara ígjøgnum allar vørulýsingarnar í vørusavninum. Upplýsingarnar um nýtsluøki og tilfar, sum vøran kann brúkast til, kunnu vera skeivar, meðan vit skráseta rætta tilfarið fyri hvørja vøru. Ert tú í iva, spyr tín kontaktpersón hjá A4.
- Betong
- Múrur og múrsteinar
- Gipsplátur

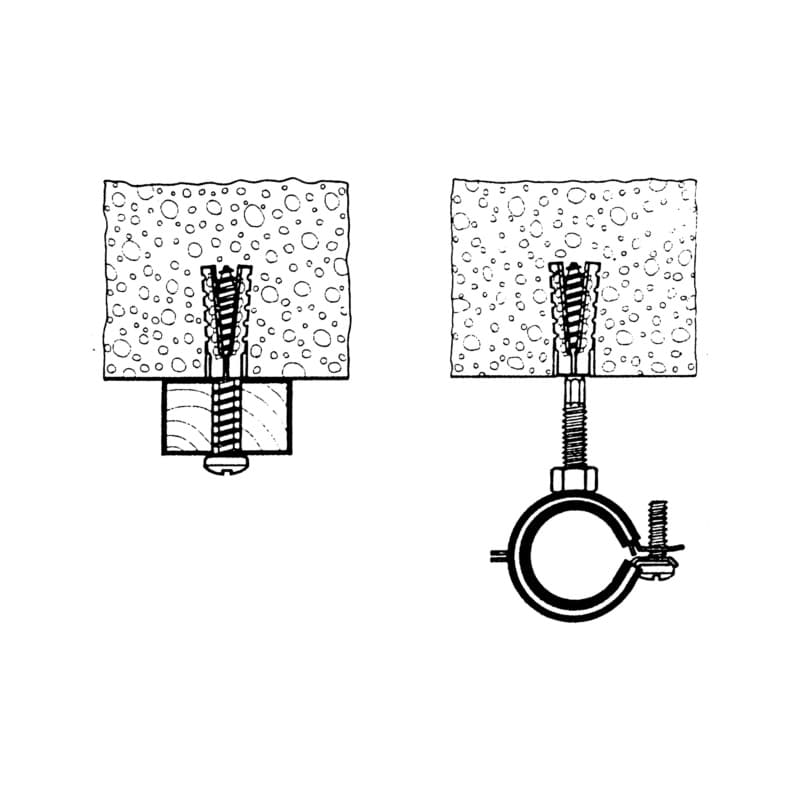

For securing cable and pipe clamps, water conduits, gas pipes etc. to autoclaved aerated concrete, gypsum block panels, pumice, lightweight concrete, perforated and solid brick, sand-lime brick and concrete.
Metal expansion anchor for fastening components in autoclaved aerated concrete and other substrates.
Fyrimunir
- Ribbed structure for safe screw guidance
- External teeth ensure high pull-out values
- The anchor fulfils technical regulations for gas pipes in line with the German Technical Regulations for Gas Installation (TRGI) 3.3.7.1 in combination with an 8 mm stair bolt (article no. 0232 98 ...).
Góð ráð
- Can be hammered directly into low-strength autoclaved aerated concrete without pre-drilling for the dimensions 5x30, 6x32 and 8x38.
- Pre-drilling is required for all other dimensions and materials.
Faklig nærlýsing
| Anchor diameter | 10 mm |
| Anchor diameter x anchor length (l) | 10 x 60 mm |
| Anchor length (l) | 60 mm |
| Drill hole depth | 70 mm |
| Material | Steel |
| Max. drill diameter | 14 mm |
| Max. drill hole diameter | 14 mm |
| Min. drill diameter | 12 mm |
| Min. drill hole diameter | 12 mm |
| Min./max. drill hole diameter | 12-14 mm |
| Required wood screw diameter (d scr.wood) | 8 - 10 mm |
| Surface | Zinc plated |
Væntað veiting: 10.–11. nov.
Bílegg í seinasta lagi mikudagin kl. 23:59 · bíleggingin verður send til Reca hósdagin
Metal aerated concrete anchor, galvanised steel, screw Ø 8.0–10.0 mm, 10 x 60 mm
Metal expansion anchor for fastening components in autoclaved aerated concrete and other substrates.
| Vørunummar | 090410 60 |
| EAN | 4029484147120 |
| Pakkieind | pk (100 stk) |
| Anchor diameter | 10 mm |
| Anchor diameter x anchor length (l) | 10 x 60 mm |
| Anchor length (l) | 60 mm |
| Drill hole depth | 70 mm |
| Material | Steel |
| Veitari | RECA NORM |
