Vit dagføra vøruupplýsingarnar. Vit fara ígjøgnum allar vørulýsingarnar í vørusavninum. Upplýsingarnar um nýtsluøki og tilfar, sum vøran kann brúkast til, kunnu vera skeivar, meðan vit skráseta rætta tilfarið fyri hvørja vøru. Ert tú í iva, spyr tín kontaktpersón hjá A4.
- Komposit
For fastening wall connection profiles, sheets, plinth protective strips, moulding covers, lighting, letterboxes, signs etc. in composite thermal insulation systems e.g. rigid foam panels, polystyrene panels, Styrodur panels, fibreboards etc.
For quick and simple direct mounting in thermal insulation composite systems (ETICS) Special screw anchor for quick and simple direct mounting of wall connecting strips and lightweight parts in thermal insulation composite systems (ETICS) without pre-drilling. For use with self-tapping and chipboard screws.
Fyrimunir
- Tapered drill tip - pre-drilling in plaster is no longer required
- Very pronounced threads - good holding values in ETICS
- Perfectly matched internal geometry - makes screwing in self-tapping screws with sealing washers and chipboard screws easy
- For insulation thicknesses from ≥ 80 mm
Góð ráð
- Pre-positioned installation possible with roofing screws or chipboard screws
- The IPSD can be screwed in using a TX 25 bit.

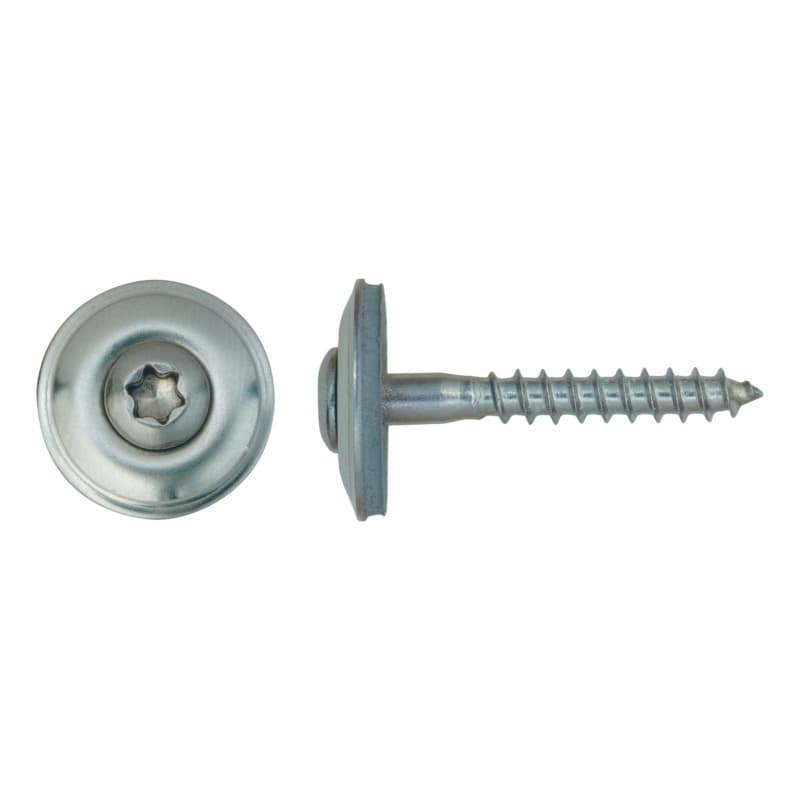

- Recommended self-tapping screw with sealing washer: 4.5 × 25 mm
- Recommended chipboard screws, dia. 4.0-4.5 mm, screw length 15-20 mm + fixture thickness
- For very hard plaster layers, pre-drill/punch a 5 mm hole
- Screws not included in the scope of delivery
Faklig nærlýsing
| Anchor length (l) | 80 mm |
| Colour | Grey |
| Internal drive | TX25 |
| Material | PA 6 GF30 - Polyamide glass fiber reinforced |
| Minimum component thickness (d) | 80 mm |
| Through-hole in the component to be connected (d f) | 8/10 mm |
Væntað veiting: 29.–30. sep.
Bílegg í seinasta lagi mikudagin kl. 23:59 · bíleggingin verður send til Reca hósdagin
IPSD insulation screw anchor TX 25 80 mm
For quick and simple direct mounting in thermal insulation composite systems (ETICS) Special screw anchor for quick and simple direct mounting of wall connecting strips and lightweight parts in thermal insulation composite systems (ETICS) without pre-drilling. For use with self-tapping and chipboard screws.
| Vørunummar | 0902010100 |
| EAN | 4029484819812 |
| Pakkieind | pk (100 stk) |
| Anchor length (l) | 80 mm |
| Colour | Grey |
| Internal drive | TX25 |
| Material | PA 6 GF30 - Polyamide glass fiber reinforced |
| Minimum component thickness (d) | 80 mm |
| Veitari | RECA NORM |
