Vit dagføra vøruupplýsingarnar. Vit fara ígjøgnum allar vørulýsingarnar í vørusavninum. Upplýsingarnar um nýtsluøki og tilfar, sum vøran kann brúkast til, kunnu vera skeivar, meðan vit skráseta rætta tilfarið fyri hvørja vøru. Ert tú í iva, spyr tín kontaktpersón hjá A4.

Field of Application

Tilfar

Komposit

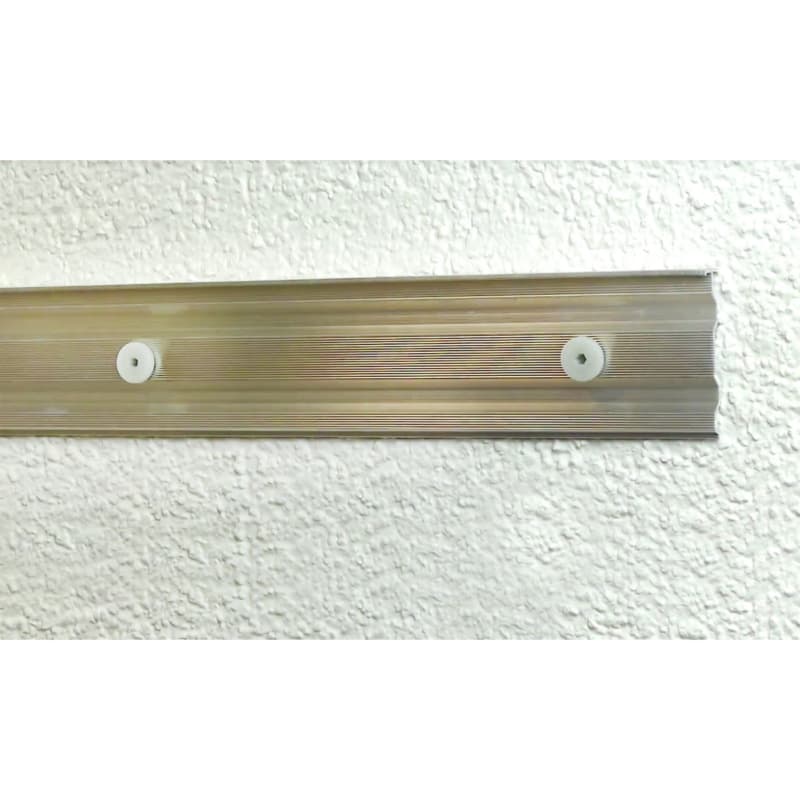

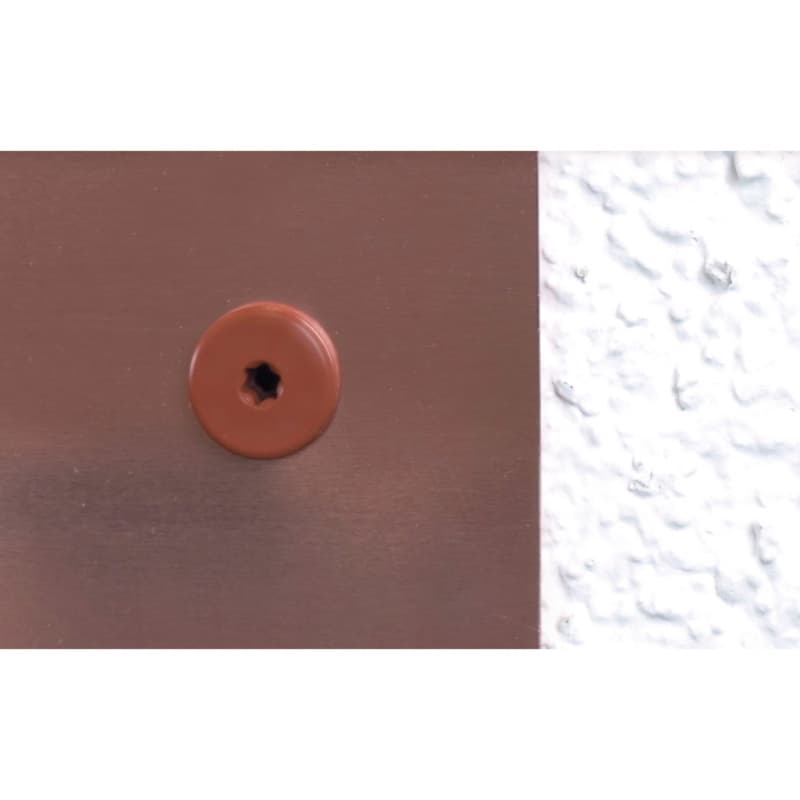

For fastening wall connection profiles, sheets, plinth protective strips, moulding covers, lighting, letterboxes, signs etc. in composite thermal insulation systems e.g. rigid foam panels, polystyrene panels, Styrodur panels, fibreboards etc.

Vørulýsing

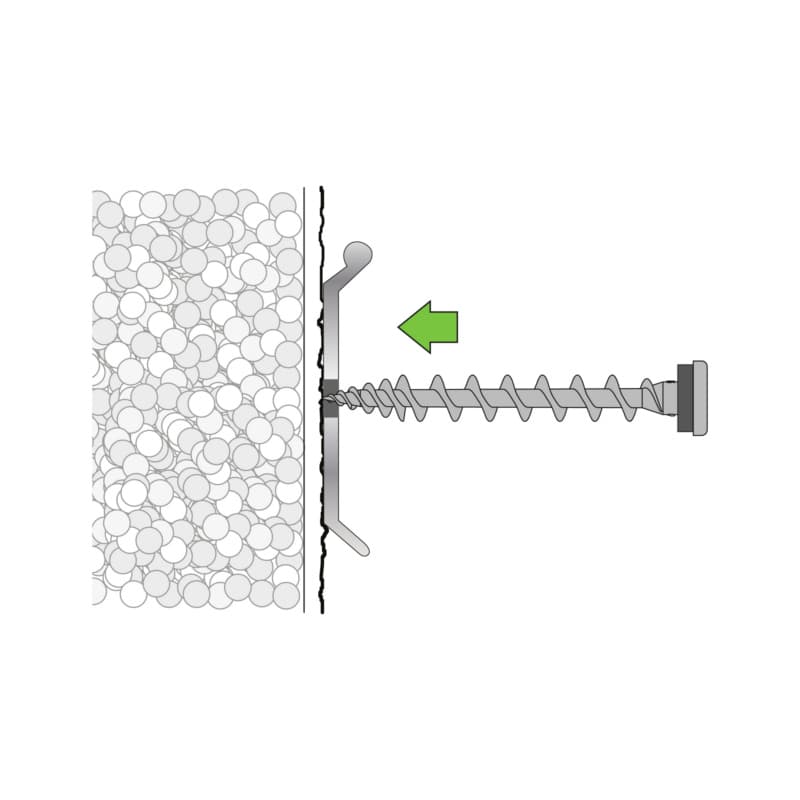

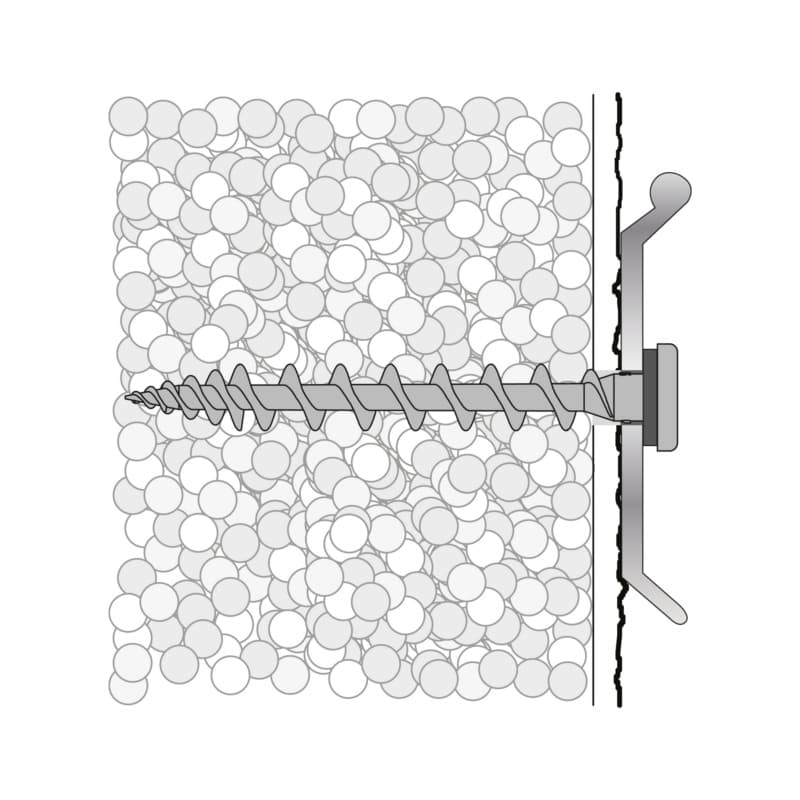

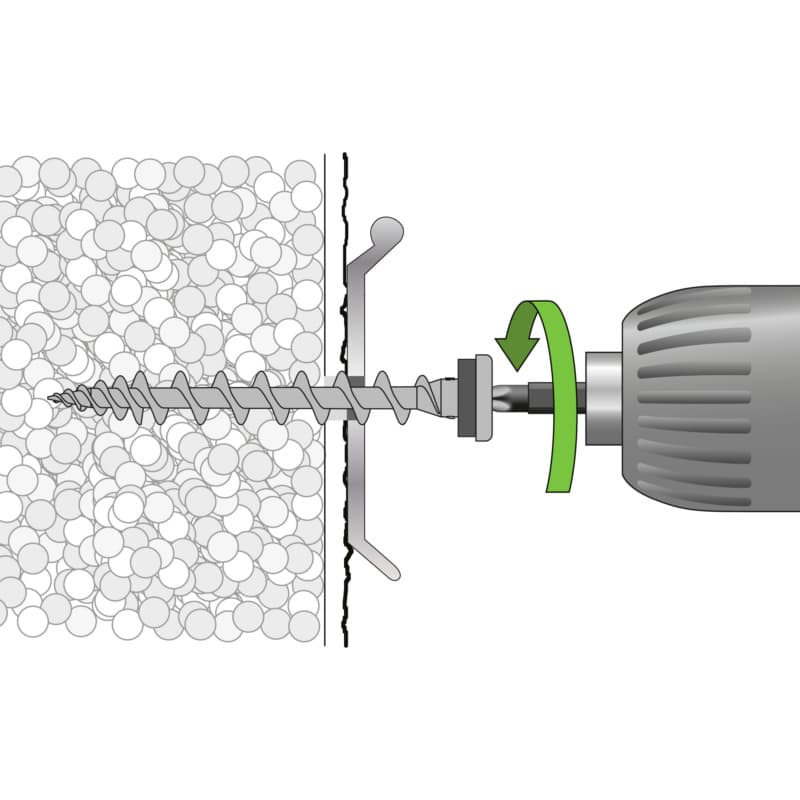

For quick and simple direct mounting in thermal insulation composite systems (ETICS) Special screw anchor for quick and simple direct mounting of wall connecting strips and lightweight parts in external thermal insulation composite systems (ETICS) without pre-drilling

Fyrimunir

Fast direct mounting
Through-bolt mounting
Pre-drilling into plaster no longer required
No thermal bridges

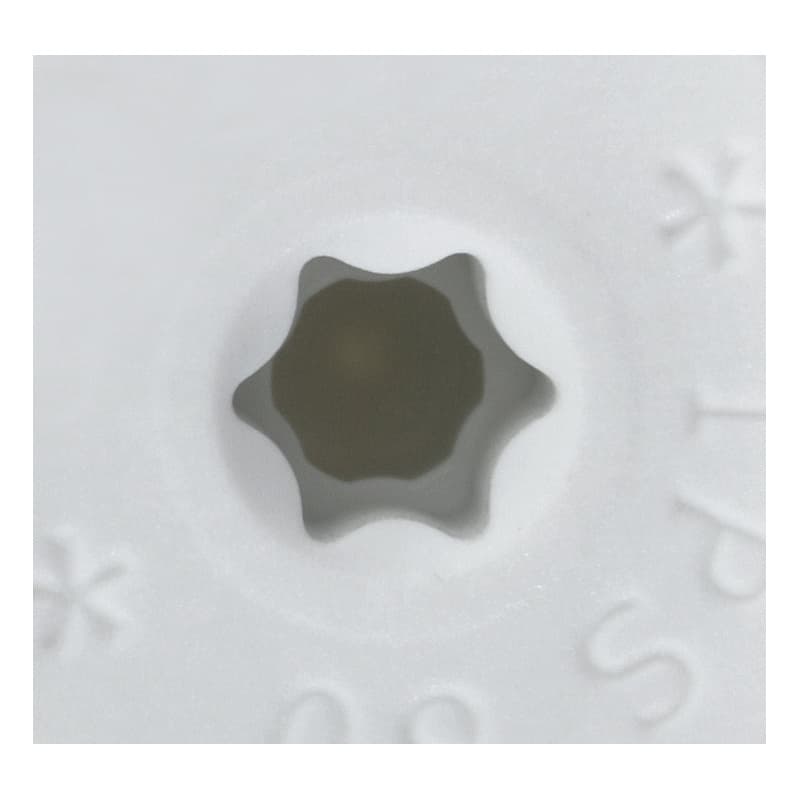

TX 25 drive
Different colours

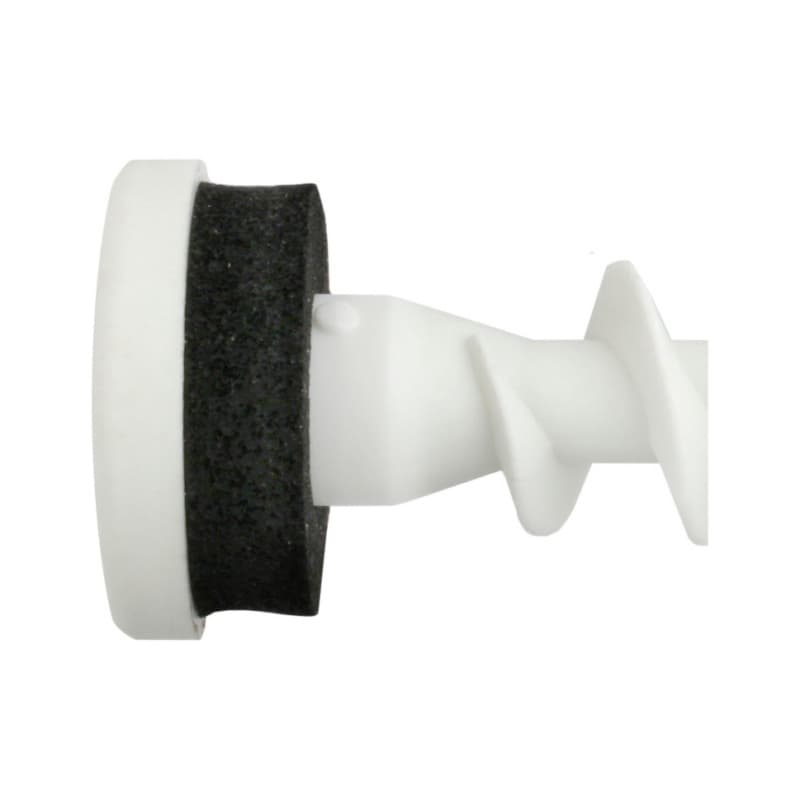

Includes EPDM seal
For all insulation thicknesses from ≥ 80 mm

Góð ráð

Screw diameter for head hole: 3.5 mm
Screw lengths for head access bore = 10 mm + fixture thickness
For very hard layers of plaster with 5 mm pre-drilling/punching

Faklig nærlýsing

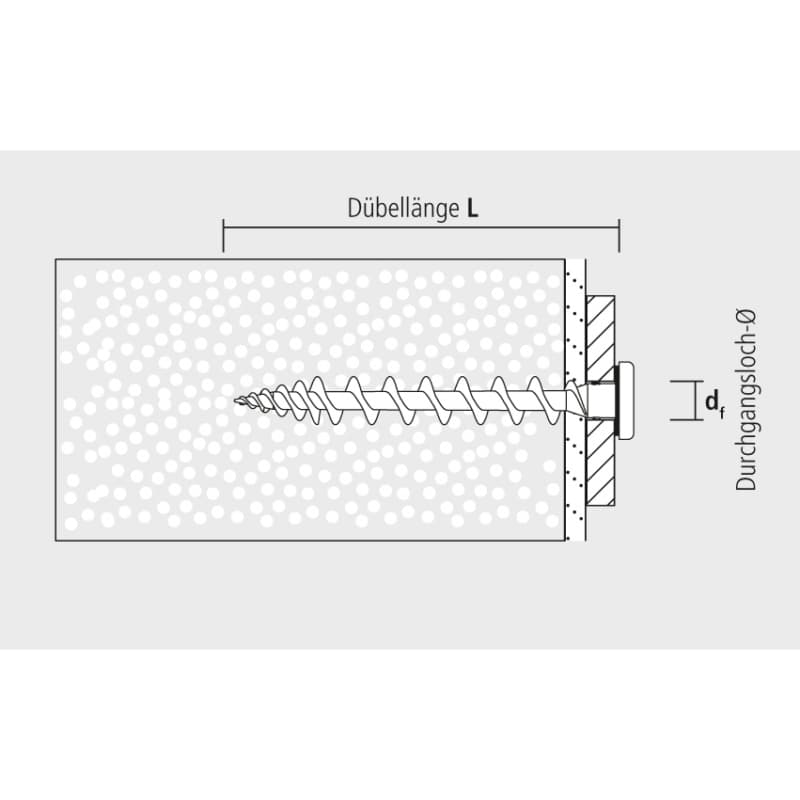

Anchor length (l)	80 mm
Colour	Traffic black RAL 9017
Head diameter	16 mm
Internal drive	TX25

Material	PA 6 GF30 - Polyamide glass fiber reinforced
Material of gasket	Ethylene propylene diene terpolymer rubber
Minimum component thickness (d)	80 mm
Through-hole in the component to be connected (d f)	8/10 mm

Væntað veiting: 29.–30. sep.

Bílegg í seinasta lagi mikudagin kl. 23:59 · bíleggingin verður send til Reca hósdagin

IPS Insulated panel screw Traffic black, RAL 9017, TX 25 80 mm

Vørunummar	0902010003
EAN	4029484779291
Pakkieind	pk (100 stk)
Anchor length (l)	80 mm
Colour	Traffic black RAL 9017
Head diameter	16 mm
Internal drive	TX25
Material	PA 6 GF30 - Polyamide glass fiber reinforced
Veitari	RECA NORM
