Vit dagføra vøruupplýsingarnar. Vit fara ígjøgnum allar vørulýsingarnar í vørusavninum. Upplýsingarnar um nýtsluøki og tilfar, sum vøran kann brúkast til, kunnu vera skeivar, meðan vit skráseta rætta tilfarið fyri hvørja vøru. Ert tú í iva, spyr tín kontaktpersón hjá A4.
- Træ
- Komposit
For mounting downpipe clamps, signs, lighting and other components in external thermal insulation composite systems (ETICS) e.g. rigid foam panels, expandable polystyrene panels, Styrofoam panels, Heraklith panels and in wood fibre insulating panels (pre-drilling to 13 mm required)

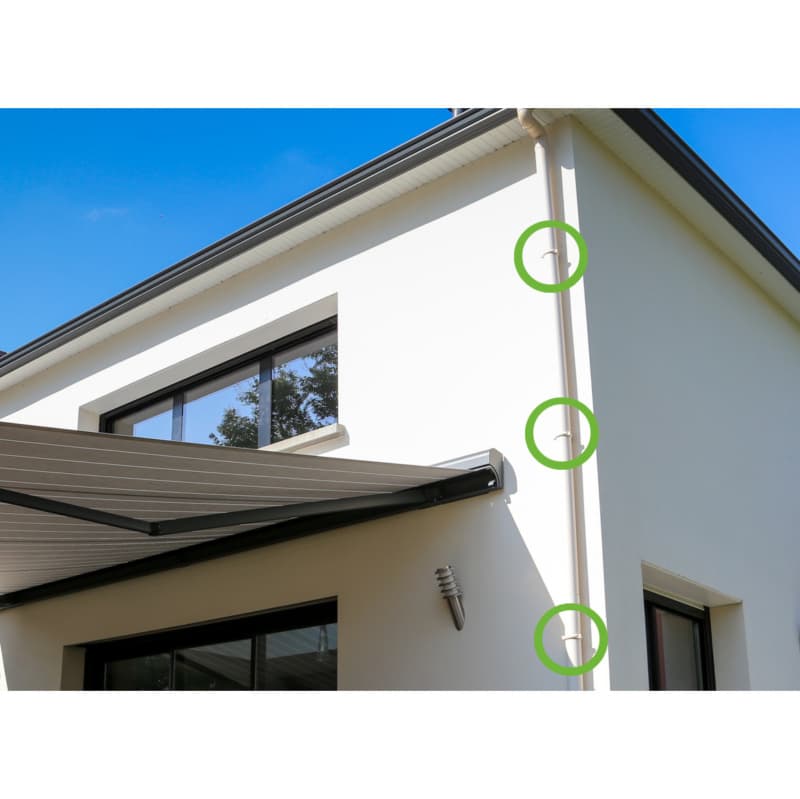

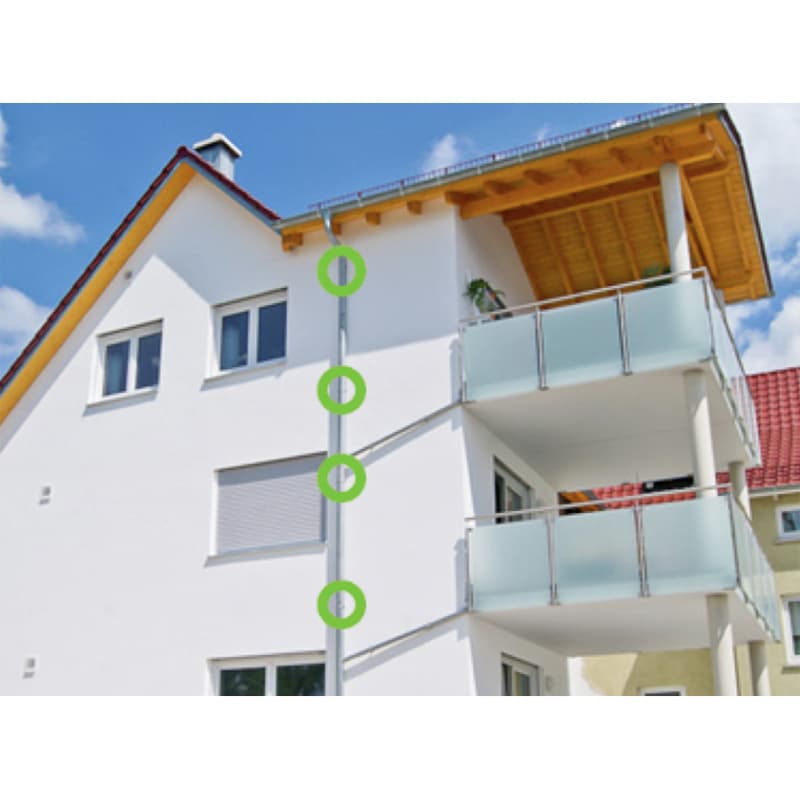

The special anchor for mounting in external thermal insulation composite systems (ETICS) This pre-mounted insulation anchor is a mounting solution developed for ETICS (external thermal insulation composite systems) with insulation thickness greater than 100 mm. Pipe clamps and other components with an M10 female threaded connection are mounted on the RECA ID 95 VM insulation anchor. These clamps are then used to mount downpipes for roof drainage. The RECA ID 95 VM insulation anchor is equipped with a drill tip. This makes it possible to mount it directly after plastering without pre-drilling into most ETICS (external thermal insulation composite systems) made from rigid foam panels, polystyrene panels, Styrofoam panels, Heraklith panels and wood fibre insulating panels (pre-drilling to 14 mm required). The set screw has a zinc flake coating, therefore offering long-term corrosion protection. The set screw is adjustable up to 25 mm. The moulded cover cap guarantees a clean connection and is also fitted with an EPDM seal to protect against moisture.
Fyrimunir
- The perfect solution for mounting downpipe clamps in ETICS: easy, flexible, fast and adjustable
- Thermal bridge-free mounting directly in the insulation material
- Pre-assembled special set screw, no loose parts
- Ideal distance of 30 mm between the downpipe and the wall
- Can be manually adjusted a further 25 mm
- Special set screw with a zinc flake coating or made of A2 stainless steel for good corrosion protection
- Integrated sealing washer made of weather-resistant rubber, no additional sealing necessary
- No pre-drilling Robust, self-drilling (ETICS plaster ≤ 7 mm) nylon dowel
Góð ráð
- Remove an area of plaster or other surface material from the substrate in the size of the wall plug collar (see table). Screw the anchor in until flush using low torque without pre-drilling
Pack of 16 = 4x4 pieces in polythene bags, insulation anchor pre-mounted with adjustable M10 set screw
Faklig nærlýsing
| Anchor diameter | 27 mm |
| Anchor length (l) | 95 mm |
| Colour | Transparent, whitish |
| Connection thread | M10 |
| Embedding depth | 95 mm |
| External drive | WS17 |
| Female thread | 10 mm |
| Internal drive | TX25 |
| Material | PA - Polyamide |
| Material of gasket | Ethylene propylene diene terpolymer rubber |
| Material of screw | Steel |
| Max. adjustment range | 30 mm |
| Max. screw-in depth of threaded rod (Lsd) | 50 mm |
| Min. screw-in depth of threaded rod (Lsd) | 20 mm |
| Min/max. screw-in depth of threaded rod (Lsd) | 20-50 mm |
| Minimum component thickness | 100 mm |
| Seal diameter | 44.5 mm |
| Surface | Flake zinc silver |
| Width across flats | 13 x 17 mm |
Væntað veiting: 29.–30. sep.
Bílegg í seinasta lagi mikudagin kl. 23:59 · bíleggingin verður send til Reca hósdagin
ID 95 VM M10 insulation anchor, pre-mounted w. drill tip, M10 connecting thread
The special anchor for mounting in external thermal insulation composite systems (ETICS) This pre-mounted insulation anchor is a mounting solution developed for ETICS (external thermal insulation composite systems) with insulation thickness greater than 100 mm. Pipe clamps and other components with an M10 female threaded connection are mounted on the RECA ID 95 VM insulation anchor. These clamps are then used to mount downpipes for roof drainage. The RECA ID 95 VM insulation anchor is equipped with a drill tip. This makes it possible to mount it directly after plastering without pre-drilling into most ETICS (external thermal insulation composite systems) made from rigid foam panels, polystyrene panels, Styrofoam panels, Heraklith panels and wood fibre insulating panels (pre-drilling to 14 mm required). The set screw has a zinc flake coating, therefore offering long-term corrosion protection. The set screw is adjustable up to 25 mm. The moulded cover cap guarantees a clean connection and is also fitted with an EPDM seal to protect against moisture.
| Vørunummar | 0902002395 |
| EAN | 4029484828807 |
| Pakkieind | pk (16 stk) |
| Anchor diameter | 27 mm |
| Anchor length (l) | 95 mm |
| Colour | Transparent, whitish |
| Connection thread | M10 |
| Embedding depth | 95 mm |
| Veitari | RECA NORM |
