Vit dagføra vøruupplýsingarnar. Vit fara ígjøgnum allar vørulýsingarnar í vørusavninum. Upplýsingarnar um nýtsluøki og tilfar, sum vøran kann brúkast til, kunnu vera skeivar, meðan vit skráseta rætta tilfarið fyri hvørja vøru. Ert tú í iva, spyr tín kontaktpersón hjá A4.
Field of Application
Tilfar
- Komposit

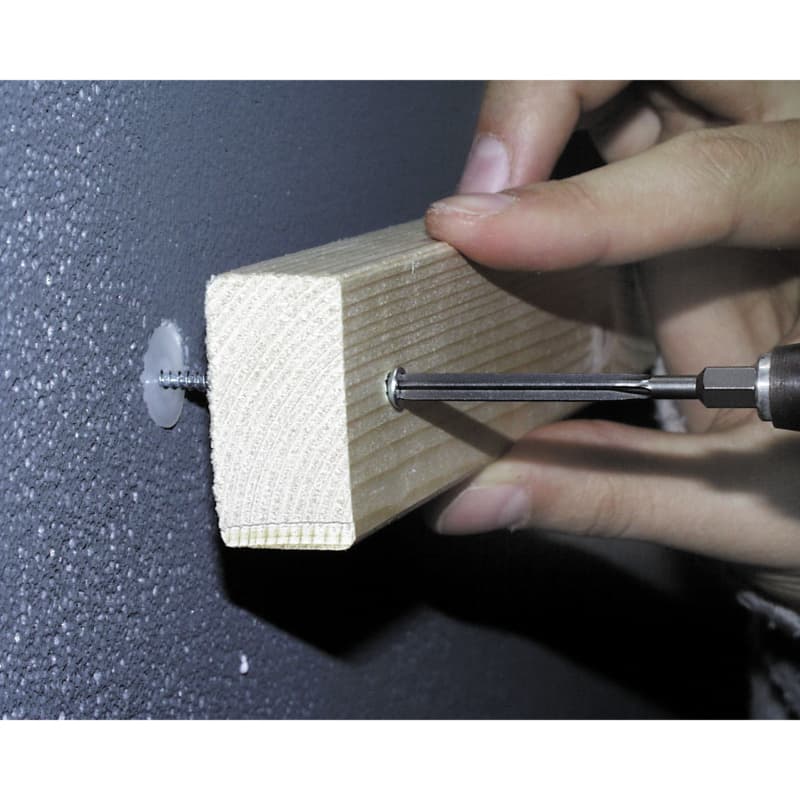

For securing electrical installations, lighting, building signs, letter boxes, motion detectors etc. in polystyrene, rigid foam panels and other thermal insulation composite systems.
Vørulýsing
The specialist anchor for fixings in polystyrene and rigid foam panels
Fyrimunir
- Can be used outdoors or in wet rooms in conjunction with stainless steel screws
- No need for time-consuming spaced installation in masonry.
- Prevents cold bridging effect
- Thermally stable from -20°C to +100°C
- Easy to use
- Rapid, economical mounting
Góð ráð

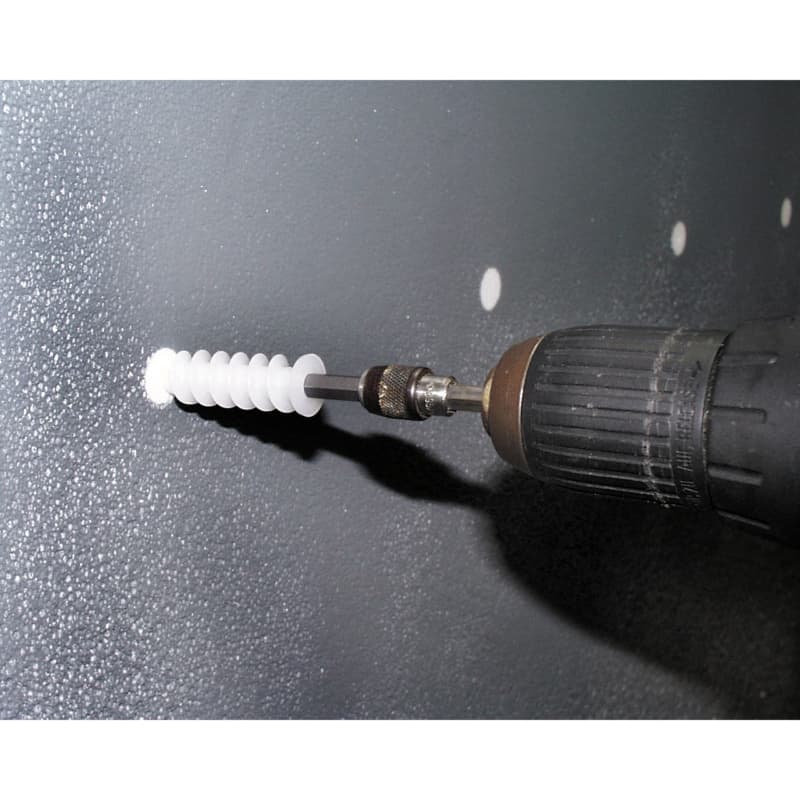

- Remove an area of plaster or other surface material from the substrate in the size of the wall plug collar (see table). Screw the anchor in until flush using low torque without pre-drilling
- All packs include a setting tool
Faklig nærlýsing
| Anchor diameter | 18 mm |
| Anchor length (l) | 50 mm |
| Colour | White |
| Drill hole diameter in plaster/cladding sheet metal (d) | 18 mm |
| Embedding depth | 50 mm |
| Internal drive | H2 |
| Material | PE - Polyethylene |
| Max. screw-in depth (d a) | 40 mm |
| Max. temperature resistance | -20 °C |
| Min. temperature resistance | 100 °C |
| Nominal drill diameter (d 0) - condition | Do not pre-drill |
| Required bolt diameter (metric) | M4 |
| Required wood screw diameter (d scr.wood) | 4 - 5 mm |
| Resistance against | Weather |
Væntað veiting: 29.–30. sep.
Bílegg í seinasta lagi mikudagin kl. 23:59 · bíleggingin verður send til Reca hósdagin
ID 50 insulation anchor, polyethylene, PH 2 50 mm
The specialist anchor for fixings in polystyrene and rigid foam panels
| Vørunummar | 0902001050 |
| EAN | 4029484270521 |
| Pakkieind | pk (50 stk) |
| Anchor diameter | 18 mm |
| Anchor length (l) | 50 mm |
| Colour | White |
| Drill hole diameter in plaster/cladding sheet metal (d) | 18 mm |
| Embedding depth | 50 mm |
| Veitari | RECA NORM |
