Application area
Tilfar
- Betong

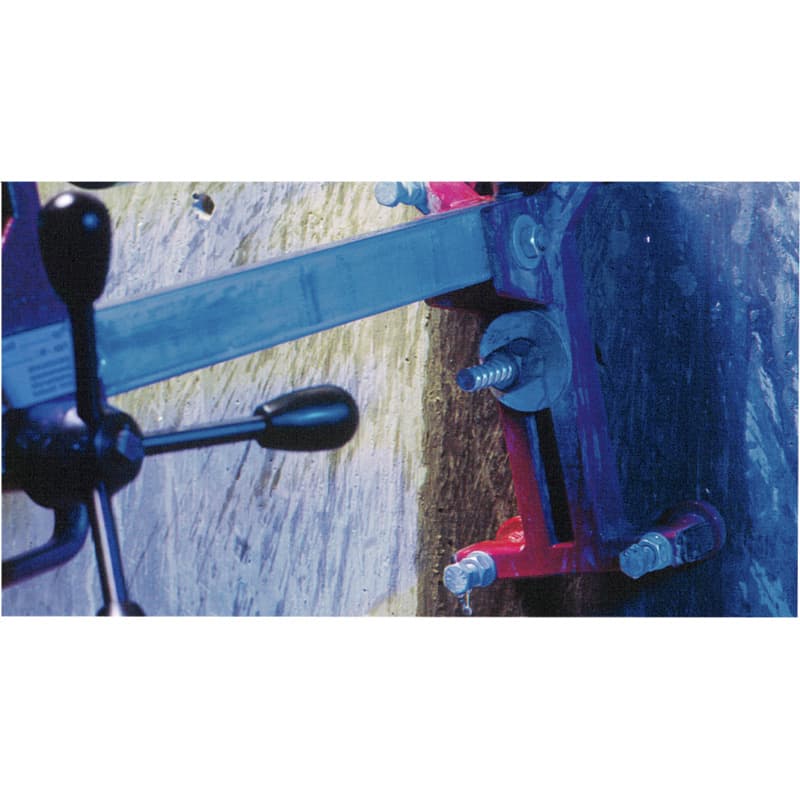

For attaching diamond drills and saw blades to concrete
Vørulýsing
Ideal for attaching diamond drills and saw blades to concrete
Fyrimunir
- Solid wall plug body with 16 mm external diameter
- Very heavy load due to large steel cross-section
- Hammerset anchor with increased steel failure load
- Greater safety margins when anchoring core drills
- For recommended loads, see EM 12 hammerset anchor (permissible loads)
- For use with expander tool E-SW 12
Góð ráð

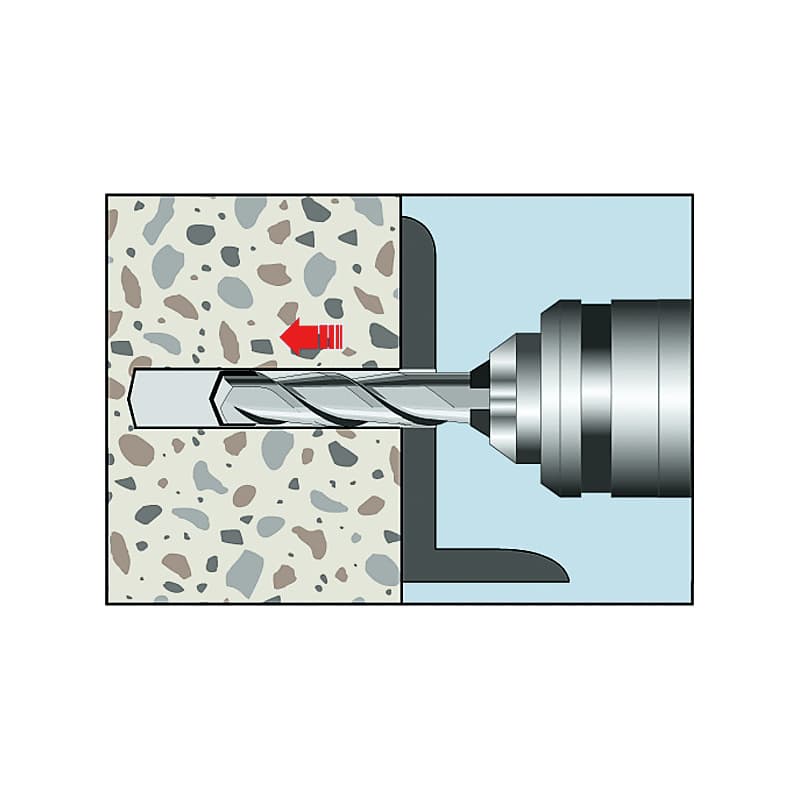

- It is essential to observe drill hole depth and drill hole diameter

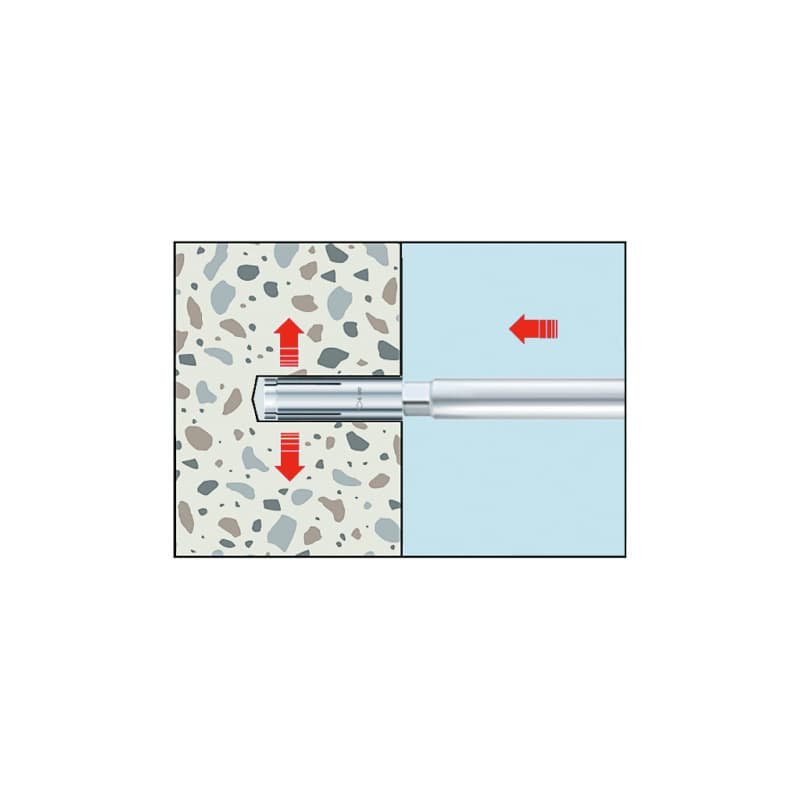

- Drive the cone in using the expander tool until the setting tool makes contact with the wall plug body

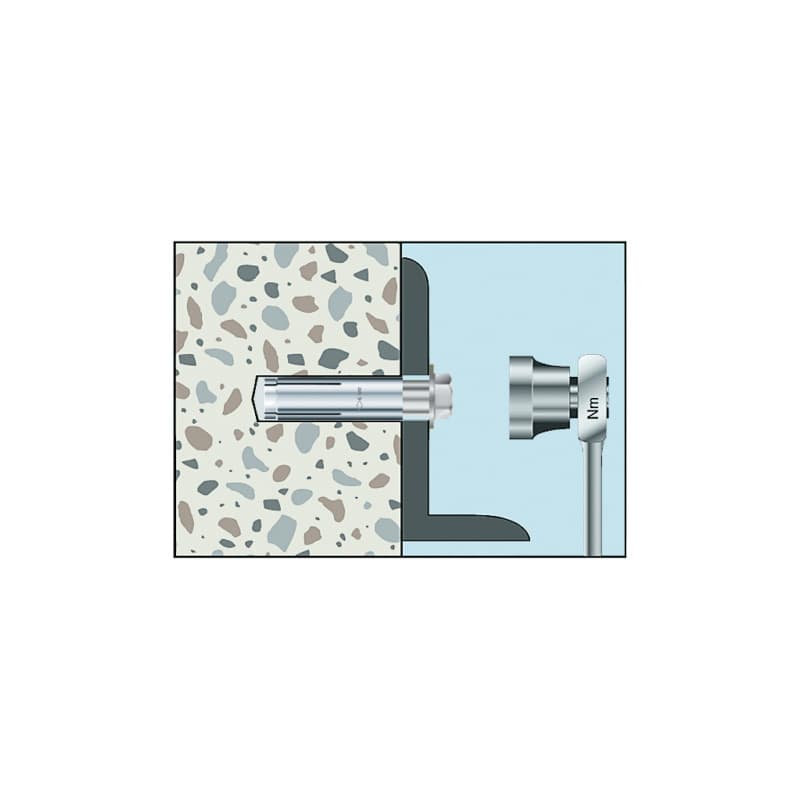

- Minimum screw length = component thickness + minimum screw-in depth
- Maximum screw length = component thickness + thread depth.
Faklig nærlýsing
| Anchor diameter | 16 mm |
| Anchor diameter x anchor length (l) | 16 x 54 mm |
| Anchor length (l) | 54 mm |
| Diameter | 16 mm |
| Drill hole depth | 50 mm |
| Drill hole diameter | 16 mm |
| Female-thread length | 18 mm |
| Length | 54.0 mm |
| Material | Steel |
| Min. centre-to-centre distance (s min) | 120 mm |
| Min. edge clearance (c min) | 165 mm |
| Min. required screw-in depth | 13 mm |
| Nominal drill-bit diameter (d 0) | 16 mm |
| Surface | Zinc plated |
| Thread type | Metric thread |
Væntað veiting: 29.–30. sep.
Bílegg í seinasta lagi mikudagin kl. 23:59 · bíleggingin verður send til Reca hósdagin
Hammerset anchor ED stainless steel, zinc-plated, M 12x50 D
Ideal for attaching diamond drills and saw blades to concrete
| Vørunummar | 090481216 |
| EAN | 4029484432721 |
| Pakkieind | pk (50 stk) |
| Anchor diameter | 16 mm |
| Anchor diameter x anchor length (l) | 16 x 54 mm |
| Anchor length (l) | 54 mm |
| Diameter | 16 mm |
| Drill hole depth | 50 mm |
| Veitari | RECA NORM |
