- Betong
For securing Threaded rods, cable conduits, pipelines, mounting rails, ventilation ducts, suspended ceilings, sprinkler systems, metal structures, grilles, formwork supports etc. on standard concrete with a strength class ≥ C20/25 and ≤ C50/60, also for use outdoors or in wet rooms if conditions are not particularly aggressive.

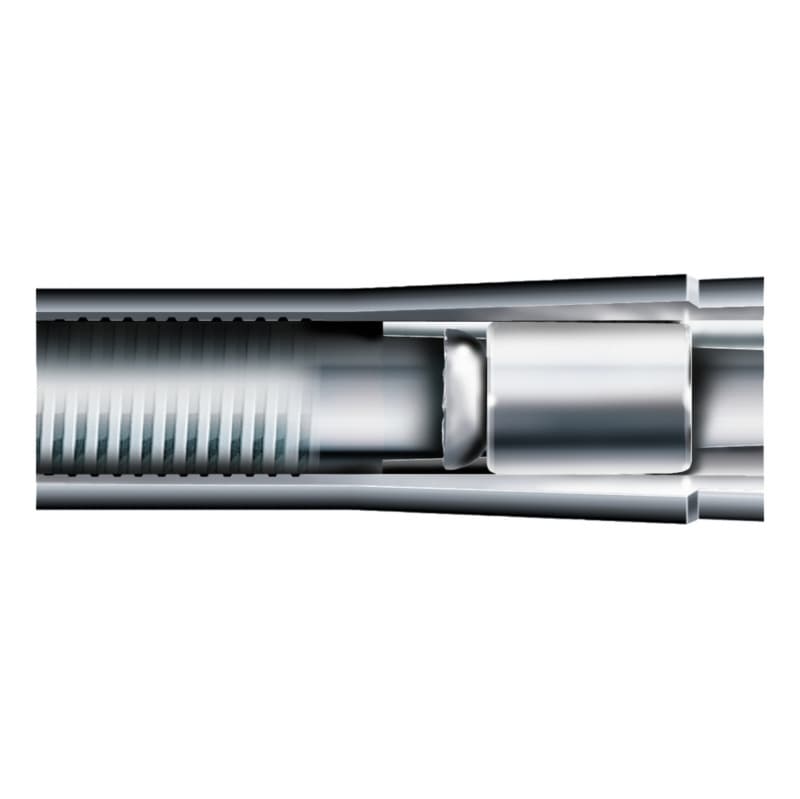

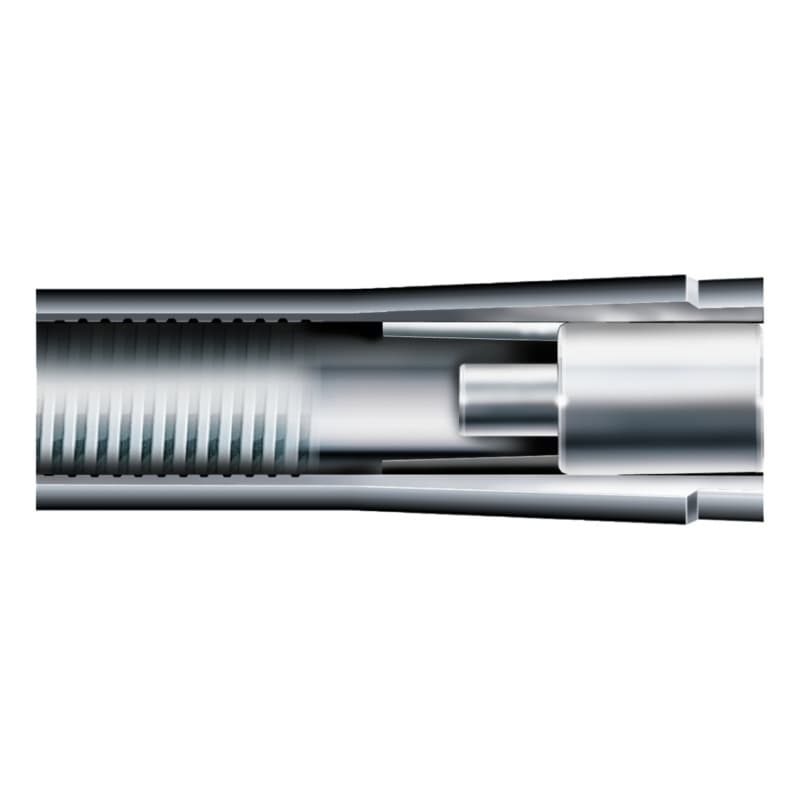

For non-cracked concrete and for the multiple attachment of non-load-bearing systems to concrete The E A4 hammerset anchor is an A4 stainless steel drop-in anchor for pre-mounting that is flush-mounted in concrete surfaces. The anchor is used to drive in the deformation-controlled cone. This expands the anchor to embed it securely in concrete with different compression strengths. The installed component can be removed and remounted without affecting load capacity.
Fyrimunir
- Small drill hole depth, high load-bearing capacity
- Two-stage expansion cone for reduced centre-to-centre distances and edge distances
- Easy installation with minimal driving effort even in high-strength building materials or when using worn drills
- Immediate load-bearing capacity - no waiting
- Fixings can be removed from the flush-mounted anchor
- No load testing required (see ETA approvals)
Góð ráð
- It is essential to observe drill hole depth and drill hole diameter
- Drive the cone in using the expander tool until the setting tool makes contact with the wall plug body
- Minimum screw length = component thickness + minimum screw-in depth
- Maximum screw length = component thickness + thread depth
Faklig nærlýsing
| Anchor diameter | 8 mm |
| Anchor diameter x anchor length (l) | 8 x 30 mm |
| Anchor length (l) | 30 mm |
| Drill hole depth | 30 mm |
| Drill hole diameter | 10 mm |
| Female-thread length | 13 mm |
| Length | 30.0 mm |
| Material | Stainless steel A4 |
| Min. centre-to-centre distance (s min) | 60 mm |
| Min. edge clearance (c min) | 95 mm |
| Min. required screw-in depth | 9 mm |
| Nominal drill-bit diameter (d 0) | 10 mm |
| Outer diameter | 10 mm |
| Thread type | Metric thread |
Væntað veiting: 29.–30. sep.
Bílegg í seinasta lagi mikudagin kl. 23:59 · bíleggingin verður send til Reca hósdagin
Hammerset anchor E stainless steel, A4 M 8x30
For non-cracked concrete and for the multiple attachment of non-load-bearing systems to concrete The E A4 hammerset anchor is an A4 stainless steel drop-in anchor for pre-mounting that is flush-mounted in concrete surfaces. The anchor is used to drive in the deformation-controlled cone. This expands the anchor to embed it securely in concrete with different compression strengths. The installed component can be removed and remounted without affecting load capacity.
| Vørunummar | 090498 |
| EAN | 4029484304660 |
| Pakkieind | pk (100 stk) |
| Anchor diameter | 8 mm |
| Anchor diameter x anchor length (l) | 8 x 30 mm |
| Anchor length (l) | 30 mm |
| Drill hole depth | 30 mm |
| Drill hole diameter | 10 mm |
| Veitari | RECA NORM |
