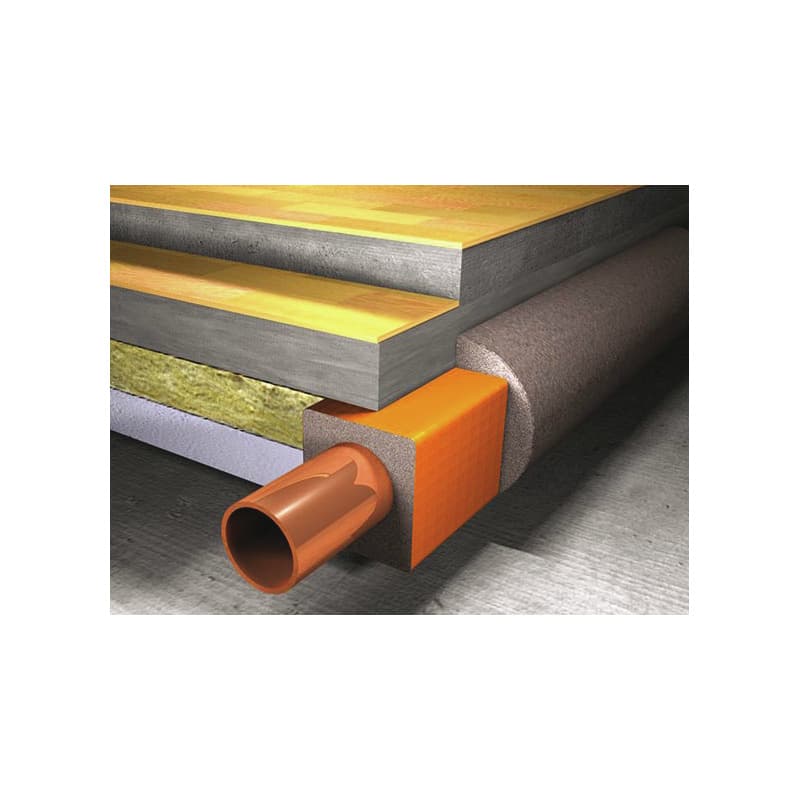

2-m rod material Eccentrically extruded pipe insulation made of closed-cell polyethylene, with co-extruded PE film. + For heating and plumbing applications + Up to 35 % material savings in floor construction + Footfall insulation guaranteed by stable screed foundation
Fyrimunir
- + Low installation height permits simple laying of the screed foundation and thus improved footfall insulation
- + Outer skin with triple reinforcement, significantly enhanced protection under extreme conditions on construction sites
- + Legible labelling and different surfaces enable simple, straightforward use.
- + Exzentroflex compact complies with point a) gg) of Annex 8.1. to the German Buildings Energy Act (GEG 2020). The 25-mm insulation is 100 % compliant with GEG 2020 and DIN 4109 requirements for sound insulation and also provides protection against condensation and corrosion.
- Product features
- + fire rating: Euroclass E (EN 13501-1)
- + thermal conductivity (EN ISO 8497):
- 9 mm - 15 to 42 mm dia.
- 0.036 W/mK at 0°C
- 0.040 W/mK at 40°C
- 0.053 W/mK at 90°C
- 25 to 51 mm - 15 to 42 mm dia.
- 0.038 W/mK at 0°C
- 0.042 W/mK at 40°C
- 0.055 W/mK at 90°C
- + Temperature range: from 0 to +100°C (EN 14707)
- + Footfall insulation guaranteed (DIN EN ISO 140-8)
Faklig nærlýsing
| Application range according to GEG | 100% |
| Construction height | 104 mm |
| Heat conductance λ | 0.040 |
| Heat conductance λ conditions | at 40°C |
| Insulating-material thickness | 46 mm |
| Pipe diameter | 42 mm |
Væntað veiting: 29.–30. sep.
Bílegg í seinasta lagi mikudagin kl. 23:59 · bíleggingin verður send til Reca hósdagin

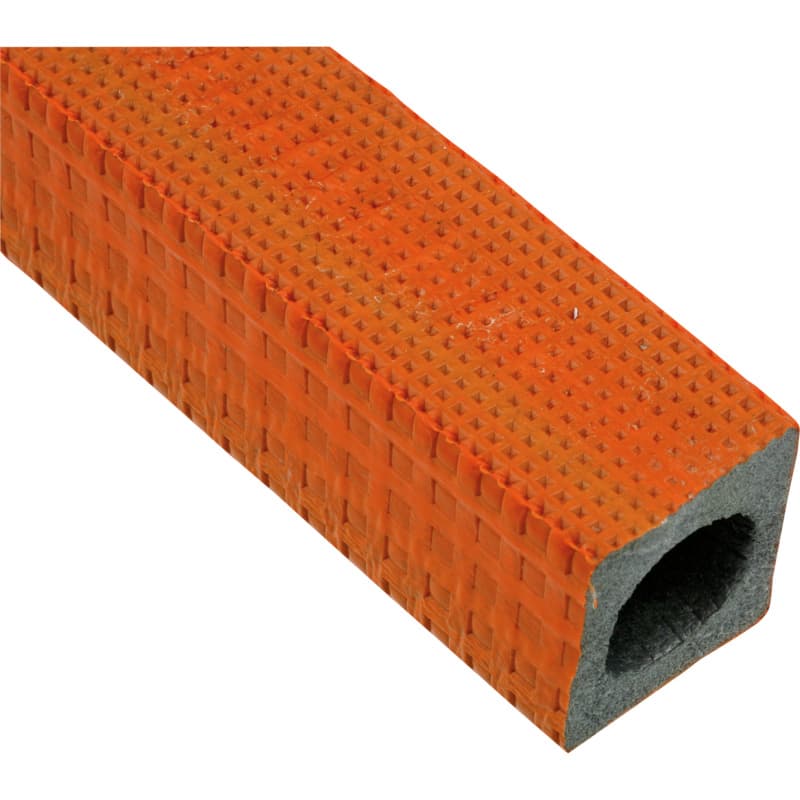

Exzentroflex PE pipe insul, Compact, 10 rods x 2 m, packing unit 20 m 42x46 mm
2-m rod material Eccentrically extruded pipe insulation made of closed-cell polyethylene, with co-extruded PE film. + For heating and plumbing applications + Up to 35 % material savings in floor construction + Footfall insulation guaranteed by stable screed foundation
| Vørunummar | 087564246 |
| EAN | 4029484505968 |
| Pakkieind | pk (20 stk) |
| Application range according to GEG | 100% |
| Construction height | 104 mm |
| Heat conductance λ | 0.040 |
| Heat conductance λ conditions | at 40°C |
| Insulating-material thickness | 46 mm |
| Veitari | RECA NORM |
