Vit dagføra vøruupplýsingarnar. Vit fara ígjøgnum allar vørulýsingarnar í vørusavninum. Upplýsingarnar um nýtsluøki og tilfar, sum vøran kann brúkast til, kunnu vera skeivar, meðan vit skráseta rætta tilfarið fyri hvørja vøru. Ert tú í iva, spyr tín kontaktpersón hjá A4.
- Aluminium
- Metalplátur
- Træ
- Betong
- Múrur og múrsteinar

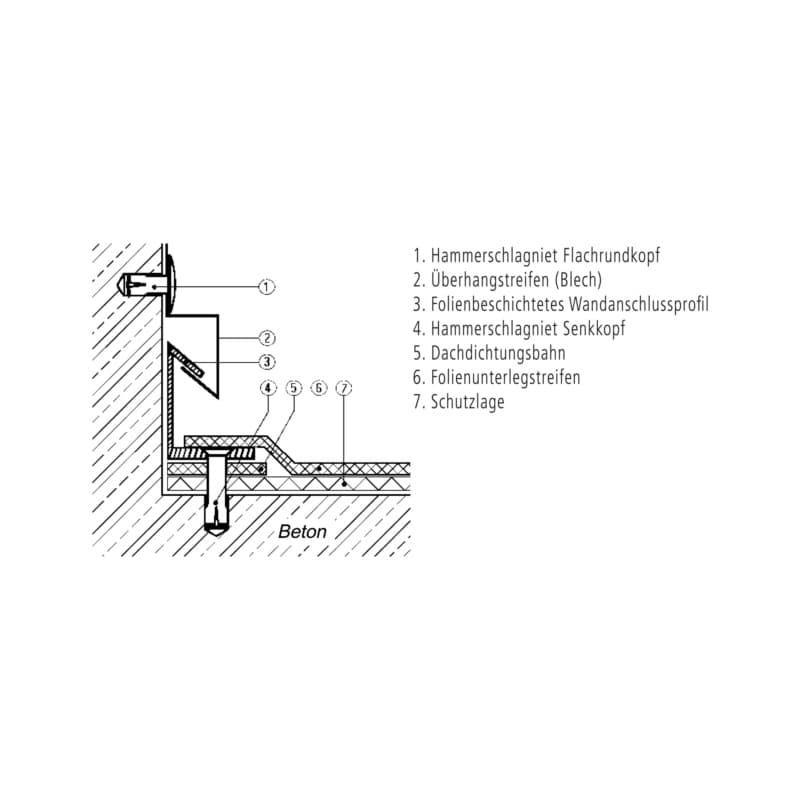

For attaching aluminium and sheet metal profiles, sealing strips, wall outlet profiles, roof edge profiles, chimney covers, wall copings, domed rooflights etc. onto masonry, concrete, hard plaster, wood in roofs and walls For fastenings in vehicle, container and equipment manufacturing
Fyrimunir
- Saves time as easy to handle and quick to install

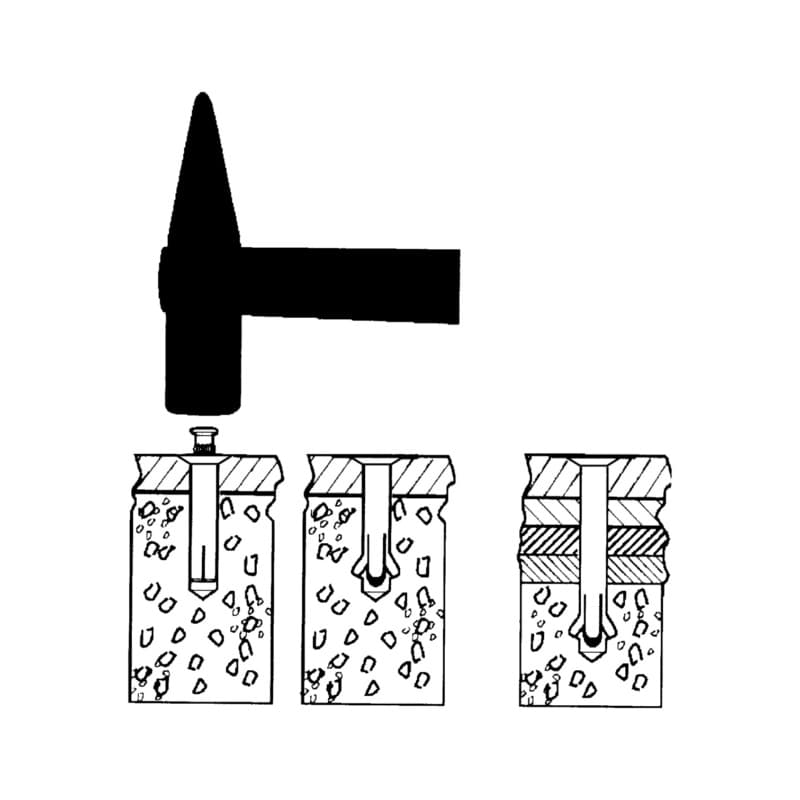

- Install with a hammer, no special tool required
- Can be used in various materials
- Can be used externally due to rustproof material components
- High clamping force, good resistance to vibration and shear strength
- One mounting part for many applications
Faklig nærlýsing
| Drill hole diameter in stone | 5 mm |
| Embedding depth in solid brick (h s) | 20.0 mm |
| Embedding depth in steel (h s) | 4.0 mm |
| Head diameter | 10.0 mm |
| Head height | 2.0 mm |
| Head type | Countersunk head 60 degree |
| Length | 25 mm |
| Material of mandrel | Stainless steel A2 |
| Material of sleeve | Aluminium, AlMg 3.0 |
| Max. drill diameter | 4.88 mm |
| Max. grip range | 5.0 mm |
| Max. grip range (steel) | 21.0 mm |
| Min. drill diameter | 4.75 mm |
| Min. grip range | 0.0 mm |
| Min. grip range (steel) | 20.5 mm |
| Min./max. drill diameter | 4.75-4.88 mm |
| Min./max. grip range | 0.0-5.0 mm |
| Min./max. grip range (steel) | 20.5-21.0 mm |
| Rivet diameter | 4.8 mm |
| Shear-fracture load | 4500 N |
| Tensile fracture load | 2000 N |
Væntað veiting: 29.–30. sep.
Bílegg í seinasta lagi mikudagin kl. 23:59 · bíleggingin verður send til Reca hósdagin
Countersunk-head hammer rivet, 120 degrees, alu/A2, bore Ø 4.8-4.9, 4.8 x 25.0
Application: area: For attaching aluminium and sheet metal profiles, sealing strips, wall outlet profiles, roof edge profiles, chimney covers, wall copings, domed rooflights etc. onto masonry, concrete, hard plaster, wood in roofs and walls For fastenings in vehicle, container and equipment manufacturing
| Vørunummar | 094514825 |
| EAN | 4029484678303 |
| Pakkieind | pk (200 stk) |
| Drill hole diameter in stone | 5 mm |
| Embedding depth in solid brick (h s) | 20.0 mm |
| Embedding depth in steel (h s) | 4.0 mm |
| Head diameter | 10.0 mm |
| Head height | 2.0 mm |
| Veitari | RECA NORM |
