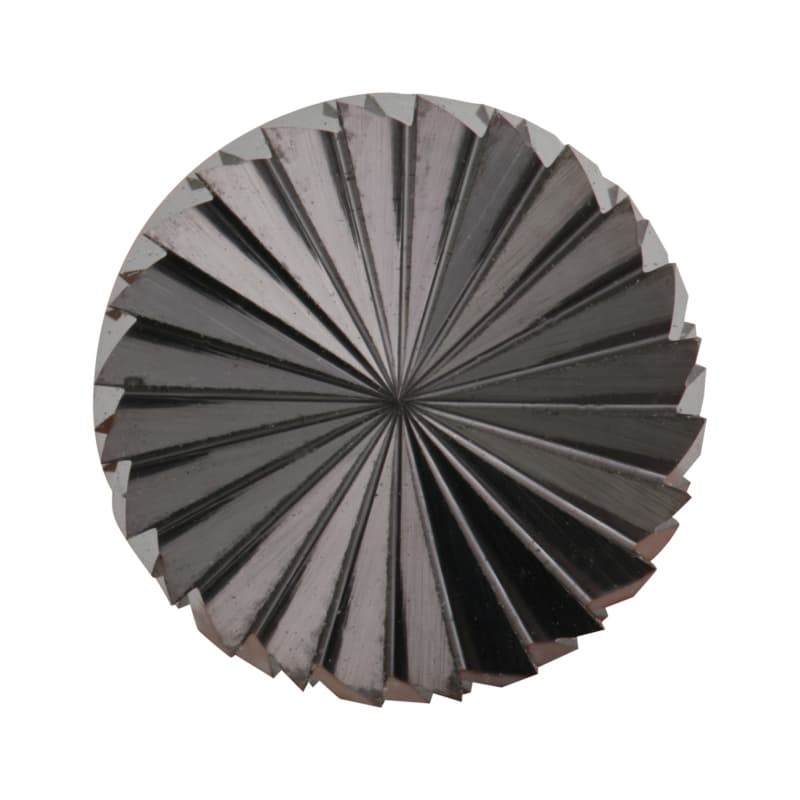

Cemented carbide milling bits, ZYA-S, cylindrical, TiAIN-coated, 12 x 25 x 6 mm

Cylindrical shape with spur cut DIN code ZYA...S

Field of Application: Solid cemented carbide head on dia. 6 mm HSS shaft (soldered), with head dia. 6 mm made entirely of solid carbide. Precision manufacture on ultra-modern CNC grinding machines ensures accurate and uniform toothing with optimal tooth sharpening angle. Recommended cutting speed v = 500-960 m/min. Calculation of rotation speed n (min): n = (v x 1000) / d x 3.1415 Optimal economic results are achieved by applying the highest possible rotation speed.

Innritan verður skjótt tøk — fá prísir við at seta teg í samband við okkum: a4@a4.fo
Vørunummar0678119525
EAN4029484508280
Construction product0 - not applicable
Cutting edge length25.0 mm
Diameter12.0 mm
Length70.0 mm
TypeCylindrical shape
SupplierRECA NORM

Cylindrical shape with spur cut DIN code ZYA...S

Field of Application:

  • Solid cemented carbide head on dia. 6 mm HSS shaft (soldered), with head dia. 6 mm made entirely of solid carbide. Precision manufacture on ultra-modern CNC grinding machines ensures accurate and uniform toothing with optimal tooth sharpening angle. Recommended cutting speed v = 500-960 m/min.
  • Calculation of rotation speed n (min): n = (v x 1000) / d x 3.1415
  • Optimal economic results are achieved by applying the highest possible rotation speed.

Advantages:



  • Ti
    AlN coating for longer service life and thermal stability
  • optimised cutting of high-strength and tough materials
  • rough and finish-milling on manually-controlled drive units
  • can also be used on stationary machines
  • Universal toothing with stronger teeth is suitable for machining stainless steels, extremely tough steels, grey cast iron, weld seams, hard plastics and tempered steels.


Type:

Cylindrical shape
