Vit dagføra vøruupplýsingarnar. Vit fara ígjøgnum allar vørulýsingarnar í vørusavninum. Upplýsingarnar um nýtsluøki og tilfar, sum vøran kann brúkast til, kunnu vera skeivar, meðan vit skráseta rætta tilfarið fyri hvørja vøru. Ert tú í iva, spyr tín kontaktpersón hjá A4.
Field of Application
Seals conical/cylindrical threaded pipe connections up to 3" radius, e.g. sprinkler systems and gas pipelines. Tightly-fastened screw connections are immediately sealed to 5 bar pressure. Hardens even at low temperatures
Vørulýsing
For sealing threaded pipe connections
Fyrimunir
- Certified to DVGW (DIN EN 751-1) and ANSI/NSF Standard 61 for use in service water and drinking water up to +82°C.
Góð ráð
- Always thoroughly pre-clean materials before bonding using e.g. arecal Novaclean.
- Always apply sufficient material (thread must be filled)
- In accordance with TRGI (Technical Guidelines for Gas Installations) '86/96, not permissible in domestic gas installations in Germany
Faklig nærlýsing
| Breakaway torque conditions | M10 mm |
| Chemical basis | Dimethacrylic acid ester |
| Colour | Yellow |
| Conditions for prevail torque | M10 |
| Density | 1.05 g/cm³ |
| Max. breakaway torque | 20 Nm |
| Max. compressive shearing strength | 13 N/mm² |
| Max. final strength | 6 h |
| Max. functional strength | 3 h |
| Max. gap-filling ability | 0.5 mm |
| Max. initial strength | 30 min |
| Max. prevail torque | 15 Nm |
| Max. temperature conditions | +150 °C |
| Max. viscosity | 80000 mPas |
| Min. breakaway torque | 10 Nm |
| Min. compressive shearing strength | 6 N/mm² |
| Min. final strength | 3 h |
| Min. flashing point | 100 °C |
| Min. functional strength | 1 h |
| Min. initial strength | 15 min |
| Min. prevail torque | 10 Nm |
| Min. temperature conditions | -55 °C |
| Min. viscosity | 55000 mPas |
| Min./max prevail torque | 10-15 Nm |
| Min./max. breakaway torque | 10-20 Nm |
| Min./max. compressive shearing strength | 6-13 N/mm² |
| Min./max. final strength | 3 h-6 h |
| Min./max. functional strength | 1-3 h |
| Min./max. initial strength | 15-30 min |
| Min./max. temperature conditions | -55 to +150 °C |
| Min./max. viscosity | 55000-80000 mPas |
| Min./max. viscosity /conditions | 55000-80000 mPas / at 25°C, Brookfield RVT/RVT/HB, TP spindl |
| Suitable for max. thread | R 3 inch |
| Viscosity conditions | at 25°C, Brookfield RVT/RVT/HB, TP spindle 6/2.5 rpm |
Væntað veiting: 29.–30. sep.
Bílegg í seinasta lagi mikudagin kl. 23:59 · bíleggingin verður send til Reca hósdagin

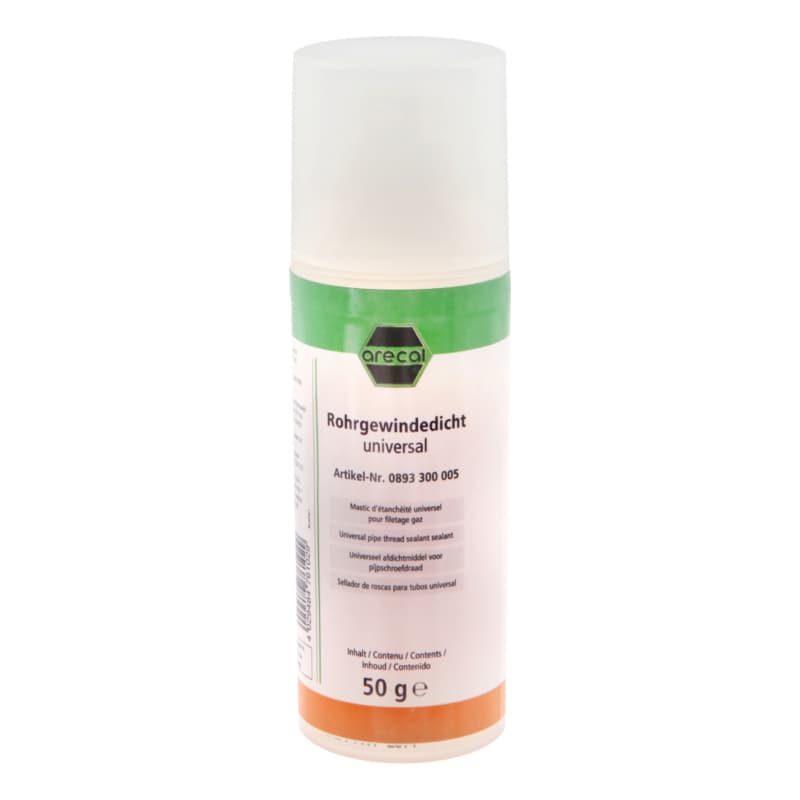

arecal universal pipe thread sealant, yellow, 50 ml
For sealing threaded pipe connections
| Vørunummar | 0893300001 |
| EAN | 4029484759439 |
| Pakkieind | 1 stk |
| Breakaway torque conditions | M10 mm |
| Chemical basis | Dimethacrylic acid ester |
| Colour | Yellow |
| Conditions for prevail torque | M10 |
| Density | 1.05 g/cm³ |
| Veitari | RECA NORM |
