Vit dagføra vøruupplýsingarnar. Vit fara ígjøgnum allar vørulýsingarnar í vørusavninum. Upplýsingarnar um nýtsluøki og tilfar, sum vøran kann brúkast til, kunnu vera skeivar, meðan vit skráseta rætta tilfarið fyri hvørja vøru. Ert tú í iva, spyr tín kontaktpersón hjá A4.
With zinc-plated lock • Nut and hook latch made of stainless cast steel • Prepared for profile cylinders • Incl. 2x 18 mm handle guides and 4 screws, 1 locking pin included • 1 turn (1 locking operation) • Profile cylinder with double-action mechanism (i.e. the latch can also be opened by turning the key) • AMF art. no. 140S
Góð ráð
- The lock is mounted in the lock housing with a stable locking pin and the lock housing is secured with a screw inserted from the lock-facing side through the latch cut-out.
- The gate is protected against lifting out with the additional bolt lock facility.
Faklig nærlýsing

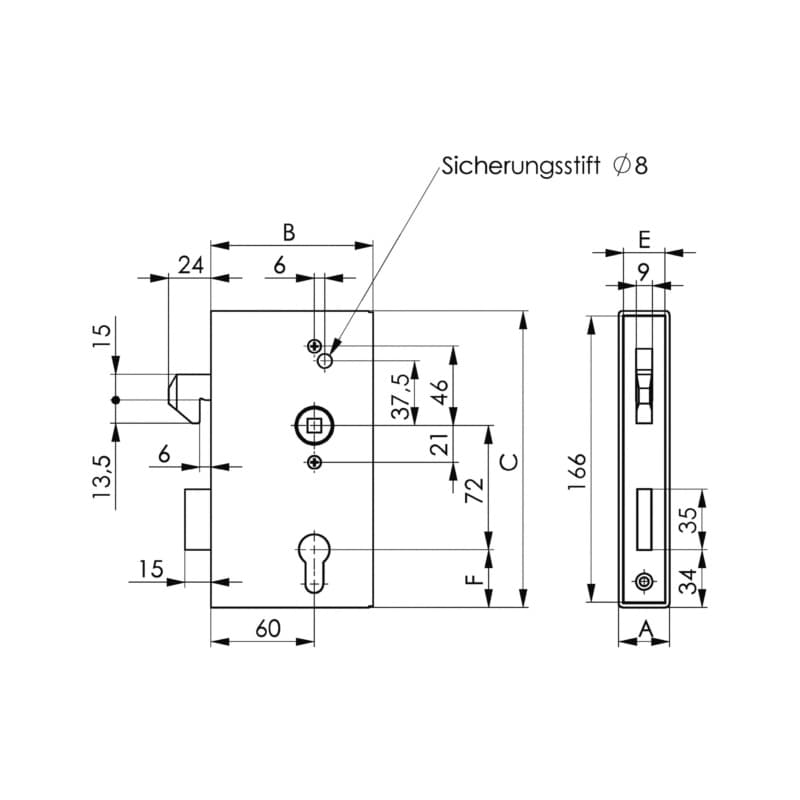

| Backset | 60 mm |
| Box length | 173 mm |
| Crate width | 94 mm |
| DIN direction | DIN R/L |
| Distance | 72 mm |
| Face plate width | 33 mm |
| Lock-case width | 40 mm |
| Material | Steel |
| Square size | 8 mm |
| Surface | Plain |
Væntað veiting: 10.–11. nov.
Bílegg í seinasta lagi mikudagin kl. 23:59 · bíleggingin verður send til Reca hósdagin
AMF sliding gate lock housing 140 S 40 mm, plain
With zinc-plated lock • Nut and hook latch made of stainless cast steel • Prepared for profile cylinders • Incl. 2x 18 mm handle guides and 4 screws, 1 locking pin included • 1 turn (1 locking operation) • Profile cylinder with double-action mechanism (i.e. the latch can also be opened by turning the key) • AMF art. no. 140S
| Vørunummar | 7211231111 |
| EAN | 4029484443406 |
| Pakkieind | 1 stk |
| Backset | 60 mm |
| Box length | 173 mm |
| Crate width | 94 mm |
| DIN direction | DIN R/L |
| Distance | 72 mm |
| Veitari | RECA NORM |
